MILL DRILL: WBM-30L 1.5kW BRUSHLESS MOTOR WEISS
$2,550.00
* The WBM-30L is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* This machine features a brushless motor which offers consistant torque at all speeds.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop.
| Weight | 280 kg |
|---|---|
| Dimensions | 0.85 × 0.89 × 1.12 cm |
Description
| Table Size (mm) | 840 x 210 |
|---|---|
| Drilling Capacity (mm) | 30 |
| Travel X-axis (mm) | 580 |
| Travel Y-axis (mm) | 200 |
| Swing (mm) | 380 |
| Max Nose to Table (mm) | 470 |
| Spindle Taper | MT3 |
| Quill Stroke (mm) | 70 |
| Quill Diameter (mm) | 70 |
| Column Diameter (mm) | Dovetail |
| Speeds (no.) | Variable |
| Speed Range (rpm) | 50 – 2250 |
| Table Slot (mm) | 14 |
| Motor (kW) | 1.5 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 240 / 280 |
| Volume (m³) | 0.8473 |
| Packing Size L x W x H (mm) | 1,100 x 700 x 1,650 |
| Stand Weight (kg) | 32 |
| Stand Volume (m³) | 0.126 |
Shipping & Delivery
Related products
MILL/DRILL: GH-45A DRO P/FEED CAST BASE WEISS
SKU:
MD-330286
* This Mill/Drill has a 800x240mm table which is hardened and precision ground
* Head tilts 90 Deg` left & right with graduations for accurate settings
* Spindle is suported with Heavy Duty taper roller bearing for long service life
* Micro downfeed with positive spindle lock
* Ridgid verticle column for chatter free milling
* Adjustable table gibs
* Solid cast stand for stability
* Fittited with coolant system
* Comes with 3 axis DRO
* Including DRO for quill travel
* Auto feed on quill
MILL/DRILL: GH-45AP DRO P/FEED CAST BASE P/QUILL WEISS
SKU:
MD-330287
* This Mill/Drill has a 800x240mm table which is hardened and precision ground
* Head tilts 90 Deg` left & right with graduations for accurate settings
* Spindle is suported with Heavy Duty taper roller bearing for long service life
* Micro downfeed with positive spindle lock
* Ridgid verticle column for chatter free milling
* Adjustable table gibs
* Solid cast stand for stability
* Fittited with coolant system
* Comes with 3 axis DRO including quill travel
* this model has power freed to quill
MILL/DRILL: WBM-20L V/SPEED BRUSHLESS MOTOR WEISS
SKU:
MD-330402
* The WMD20L is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* This machine features the new brushless motor which offers more torque than the old model.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop.

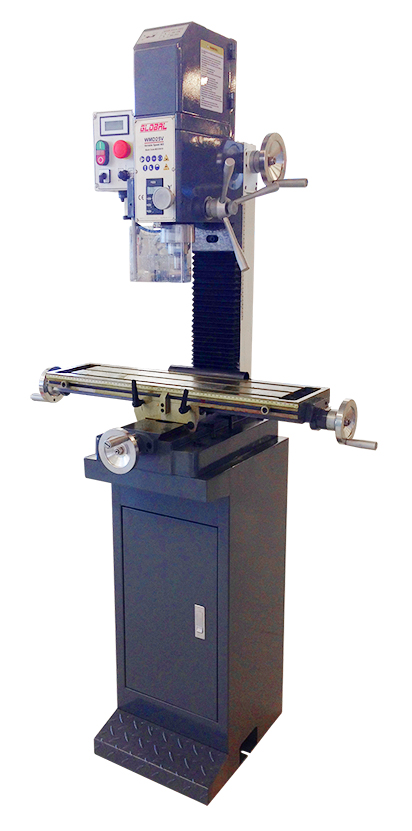

MILL/DRILL: WM-25VL V/SPEED BRUSHLESS MTR P/FEED WEISS
SKU:
MD-330410
* The WMD25L is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* This machine features a brushless motor which offers consistant torque at all speeds.
* Spindle is supported by high speed taper roller bearings.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop
* Fitted with table power feed
MILL DRILL: WMD-30L 1.5kW WEISS
SKU:
MD-330418
* The WMD30L is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop.
MILL DRILL: WMD-32B 1.5HP 1PH WEISS
SKU:
MD-330424
* The WMD-32B is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* This machine features a brushless motor which offers consistant torque at all speeds.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop.
MILL DRILL: WMD-32L 1.5kW 1PH V/SPD BRUSHLESS WEISS
SKU:
MD-330426
* The WMD32L is a compact milling & drilling machine with a variable speed control offering speeds from 50 to 2250rpm with a turn of a dial.
* This machine features a brushless motor which offers consistant torque at all speeds.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop
* Brushless verable speed motor
FOOT SWITCH: SUIT VM25L & VM32L
SKU:
MD-330530
