Table Size (mm) | 800 x 240 |
---|---|
Drilling Capacity (mm) | 40 |
Travel X-axis (mm) | 500 |
Travel Y-axis (mm) | 230 |
Swing (mm) | 430 |
Max Nose to Table (mm) | 450 |
Spindle Taper | MT4 |
Quill Stroke (mm) | 120 |
Quill Diameter (mm) | 75 |
Column Diameter (mm) | Dovetail |
Speeds (no.) | 6 |
Speed Range (rpm) | 75 – 1600 |
Table Slot (mm) | 14 |
Motor (kW) | 1.1 |
Voltage (V) | 230 |
Weight Nett / Gross (kg) | 270 / 371 |
Volume (m³) | 0.7429 |
Stand Volume (m³) | 0.1662 |
Stand Weight (kg) | 40 |
Pcking Size L x W x H |
Description
SKU : MD-330288
Price per Unit
$5,700.00 (Exc GST)
$6,555.00 (Inc GST)
FEATURES:
* Precision mill, quiet & smooth running, yet solid & stable.
* Heavy cast square section column with dovetail slideway.
* Covers on both vertical & horizontal slideways.
* Head can be tilted ±90°.
* Fine down feed adjustment.
* Forward & reverse magnetic safety switch.
* Recycling coolant system with filters.
* Adjustable table travel stops.
* Adjustable depth gauge.
* Mounted on a heavy duty stand.
* Fitted with 2 axes digital readout.
Weight | 411 kg |
---|---|
Dimensions | 0.85 × 0.76 × 1.15 cm |
Specifications
Description
Reviews (0)
Be the first to review “MILL/DRILL: GL-45D WITH DRO 1PH” Cancel reply
Shipping & Delivery
Related products
MILL/DRILL: E2 25MM 700 X 180MM V/SPEED 1PH WEISS
SKU:
MD-330200
$5,200.00
* This New E2 machine incorporates most milling functions as well as the normal drilling operations.
* Rigid and durable construction.
* The table is hardened and ground to provide a hard wearing surface.
* A good size compound table allows accurate movement in X & Y direction.
* Fitted with variable speed motor for easy speed change and smooth running.
* This machine is also available with power feed.
MILL/DRILL: E3 25MM 840 X 210MM V/SPEED 1PH WEISS
SKU:
MD-330205
$6,600.00
* This New E2 machine incorporates most milling functions as well as the normal drilling operations.
* Rigid and durable construction.
* The table is hardened and ground to provide a hard wearing surface.
* A good size compound table allows accurate movement in X & Y direction.
* Fitted with variable speed motor for easy speed change and smooth running.
* This machine is also available with power feed.
MILL/DRILL: GH-45AP DRO P/FEED CAST BASE P/QUILL WEISS
SKU:
MD-330287
$7,915.00
* This Mill/Drill has a 800x240mm table which is hardened and precision ground
* Head tilts 90 Deg` left & right with graduations for accurate settings
* Spindle is suported with Heavy Duty taper roller bearing for long service life
* Micro downfeed with positive spindle lock
* Ridgid verticle column for chatter free milling
* Adjustable table gibs
* Solid cast stand for stability
* Fittited with coolant system
* Comes with 3 axis DRO including quill travel
* this model has power freed to quill
MILL/DRILL: WBM-16A V/SPEED BRUSHLESS MOTOR WEISS
SKU:
MD-330396
$1,900.00
* Compact milling & drilling machine with variable speed control.
* Brushless motor provides more power & less maintenance.
* Motor control board manufactured in the U.S.A.
* Digital displays for both speed & depth.
* Geared head for greater torque & quiet running.
* Head is raised & lowered on the dovetail column using a handwheel.
* Spindle is supported by high speed taper roller bearings.
* Fine down feed adjustment.
* Heads can be tilted ±90°.
* These models are ideal for hobbyists and small workshops.
MILL/DRILL: WBM-20L V/SPEED BRUSHLESS MOTOR WEISS
SKU:
MD-330402
$2,100.00
* The WMD20L is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* This machine features the new brushless motor which offers more torque than the old model.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop.
MILL DRILL: WBM-30L 1.5kW BRUSHLESS MOTOR WEISS
SKU:
MD-330419
$2,550.00
* The WBM-30L is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* This machine features a brushless motor which offers consistant torque at all speeds.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop.
MILL DRILL: WMD-30LV 1.1KW WITH POWERFEED WEISS
SKU:
MD-330420
$3,500.00
* The WMD30LV is a compact milling & drilling machine with a variable speed control offering speeds from 0 to 2250rpm with a turn of a dial.
* Powerfeed fitted on the X axis.
* This machine features a brushless motor which offers consistant torque at all speeds.
* Spindle is supported by high speed taper roller bearings.
* The geared head provides greater torque and quite running.
* Head is raised by handwheel on column with dovetail ways.
* Head can be tilted to 90°.
* This is an ideal machine for modelmakers or any small workshop.

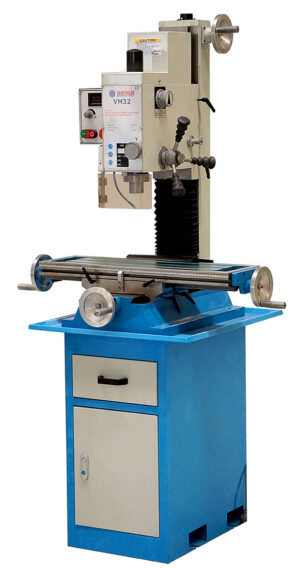

MILL DRILL: WMD-32B 1.5HP 1PH WEISS
