| DESCRIPTION | Milling Drilling Machine |
|---|---|
| MODEL | GH-45V |
| TABLE SIZE | 800 x 240mm |
| MAX DRILLING CAPACITY | 32.0mm |
| MAX MILLING CAPICITY | 25.0mm E/Mill |
| MAX FACING CAPACITY | 76.0mm |
| TABLE CROSS TRAVEL | 190mm |
| LONGITUDIONAL TRAVEL | 560mm |
| SPINDLE TAPER | MT4 |
| HEAD VERTICLE TRAVEL | 350mm |
| SPINDLE STROKE | 120mm |
| T-SLOT | 3 X 14.0mm |
| SPINDLE SPEEDS VARIABLE | L>75~ 435, H> 435 ~ 2500 |
| SPEED RANGE | 75 – 2500rpm |
| DISTANCE – NOSE TO TABLE | 460mm |
| HEAD TILT LEFT-RIGHT | +/- 45 Degs |
| MOTOR | 1500w 230v 1 Phase VDF Drive |
| WEIGHT NETT/GROSS | 490/570kg |
| VOLUME | 2.874 |
| Packing Size L x W x H | 1280 x 1050 x 28224mm |
Description
SKU : MD-330285
Price per Unit
$8,800.00 (Exc GST)
$10,120.00 (Inc GST)
FEATURES:
* Precision mills, quiet & smooth running, yet solid & stable.
* Heavy cast square section column with dovetail slideway.
* Covers on both vertical & horizontal slideways.
* Heads can be tilted ±90°.
* Fine down feed adjustment.
* Forward & reverse magnetic safety switch.
* Recycling coolant system with filters.
* Adjustable table travel stops.

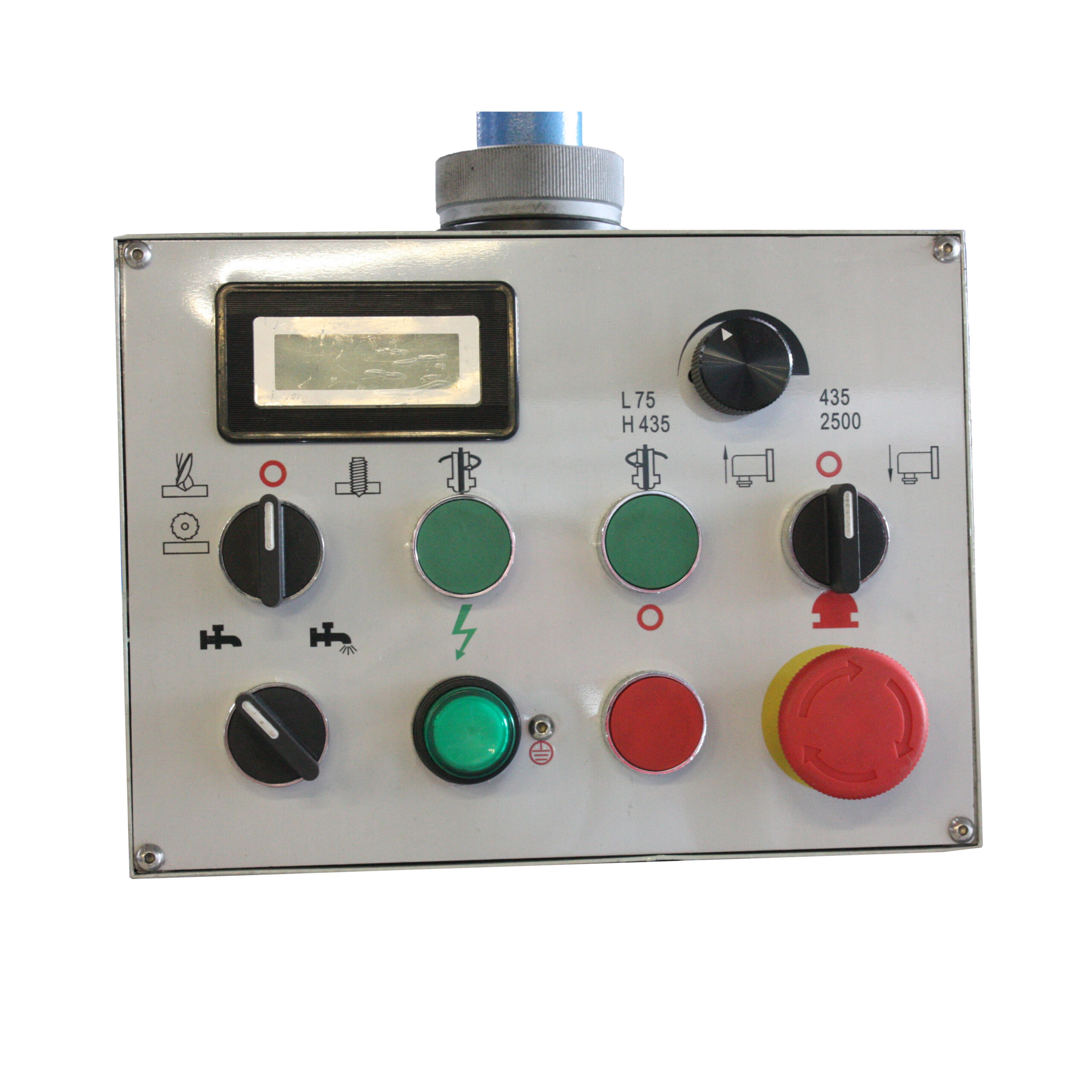

* Control box on swivel arm.
* Electrical box on back of column.
| Weight | 570 kg |
|---|---|
| Dimensions | 1.28 × 1.05 × 2.1 cm |
