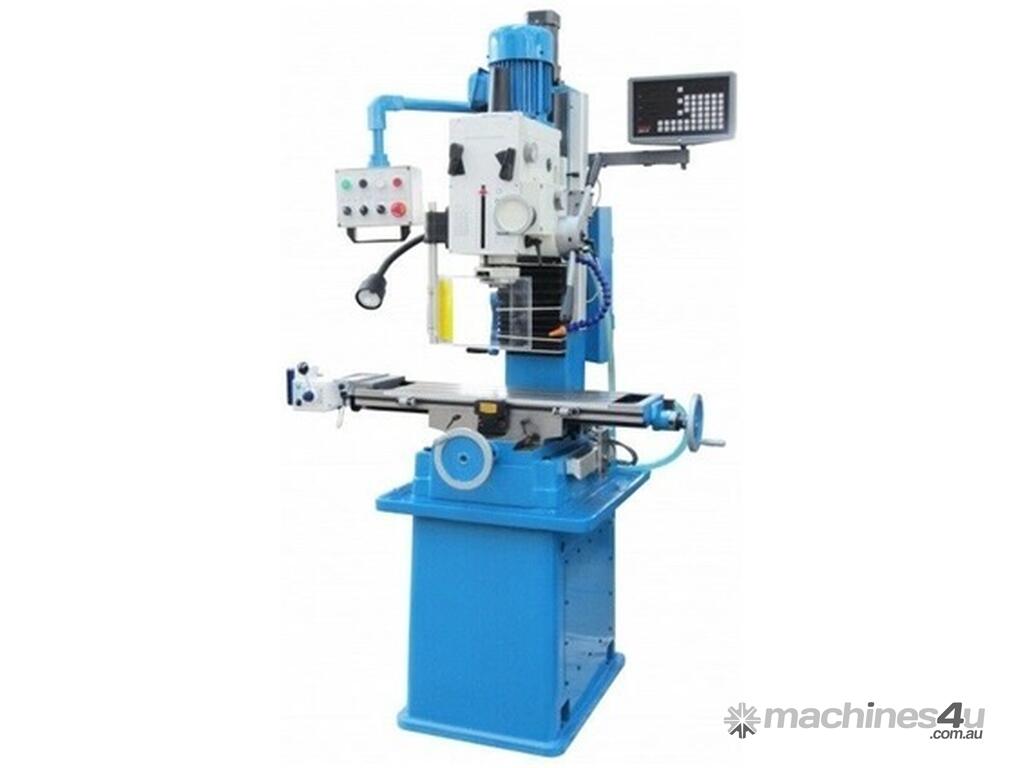

MILL/DRILL: GH-45A DRO P/FEED CAST BASE WEISS
$7,500.00
* This Mill/Drill has a 800x240mm table which is hardened and precision ground
* Head tilts 90 Deg` left & right with graduations for accurate settings
* Spindle is suported with Heavy Duty taper roller bearing for long service life
* Micro downfeed with positive spindle lock
* Ridgid verticle column for chatter free milling
* Adjustable table gibs
* Solid cast stand for stability
* Fittited with coolant system
* Comes with 3 axis DRO
* Including DRO for quill travel
* Auto feed on quill
| Weight | 300 kg |
|---|---|
| Dimensions | 1.28 × 1.05 × 2.1 cm |
In stock
Description
| Table Size (mm) | 800 x 240 |
|---|---|
| Drilling Capacity (mm) | 40 |
| Travel X-axis (mm) | 565 |
| Travel Y-axis (mm) | 190 |
| Swing (mm) | 430 |
| Max Nose to Table (mm) | 470 |
| Spindle Taper | MT4 |
| Quill Stroke (mm) | 120 |
| Quill Diameter (mm) | 75 |
| Column Diameter (mm) | Dovetail |
| Speeds (no.) | 6 |
| Speed Range (rpm) | 75 – 1600 |
| Table Slot (mm) | 14 |
| Motor (kW) | 1.1 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 300 / 350 |
| Volume (m³) | 1 |
| Stand Volume (m³) | 0.166 |
| Stand Weight (kg) | 40 |
| Packing Size L x W x H | 1.280 x 1.050 x 2.100mm |
Shipping & Delivery
