MAG/DRILL: EUROBOOR ECO-TUBE 55 – 55MM CAPACITY
$4,300.00
* Euorbor ECO-TUBE 55 Magnetic Drilling system with a 1.6kW motor to cope with the heaviest of work.
* No electricity required for magnetic base.
* Unique flexible features for pipes of various sizes.
* No special attachments needed to accommodate flat or curved surfaces.
* Highly stable wide stance.
* Two separate magnets allow the machine to swing away without losing position.
* Easy to handle.
* Direct spindle drive.
* Comes with 12 month warranty.
| Weight | 13 kg |
|---|---|
| Dimensions | 0.5 × 0.42 × 0.18 cm |
Description
| Brand | Euroboor |
|---|---|
| Model | EC0-TUBE 55 |
| Cap. Annular Cutters (mm) | 55 |
| Cap. Twist Drills (mm) | 23 |
| Cap. Countersinking (mm) | 60 |
| Threading (M) | N.A. |
| Stroke (mm) | 170 |
| Weight (kg) | 18 |
| Magnet L x W (mm) | 266 x 240 |
| Magnetic Force (kg) | 860 |
| Speeds (no.) | 2 |
| No-Load Speed (rpm) | 60 – 500 |
| Load Speed (rpm) | 60 – 500 |
| Spindle | MT3 / Weldon |
| Voltage (V) | 240 |
| Motor Power (kW) | 1.6 |
| Weight Nett/Gross | 13kg |
| Volume | 0.0378cm |
| Packing Size L x W x H |
Shipping & Delivery
Related products
MCD 32: DRILL CHUCK 3-16MM WELDON SHANK ADAPTOR
SKU:
DC-222316
MAG/DRILL: MACKMA M50RLX- 50MM CAPACITY
SKU:
DSM360220
M50 RLX magnetic drilling machine, versatile in a compact form. The exchangeable MT 2 makes this magnetic drilling machine all all- round machine for drilling purposes. The variable speed and right / left option enable this magnetic drilling machine to also be used for tapping / threading up to M16, reaming and countersinking. This machine is supplied as standard with auto coolant system cleverly placed on top of the machine. The magnetic drilling machine is powered by a strong 1150 watts Eibenstock motor.
MAG/DRILL STAND ONLY: EUROBOOR F16
SKU:
DSM360300
MAG/DRILL: EUROBOOR ECO-40S 40MM CAPCITY LIGHTWEIGHT
SKU:
DSM360409
* Euorboor ECO-40S Magnetic Drilling system with a powerful 1.15kW motor to cope with the heaviest of work.
* At 10.3kg it is the lightest machine on the market.
* High efficiency motor with less heath generation.
* High accuracy capstan hub.
* Direct spindle drive.
* Integrated tool cooling and lubrication.
* Strong dual coil CNC machined magnet.
* Comes with 12 month warranty.
MAG/DRILL: EUROBOOR ECO-55-T 55MM CAPACITY
SKU:
DSM360430
* Euorboor ECO-55-T Magnetic Drilling system with 1.7kW motor to cope with the heaviest of work.
* The drilling system runs on high precision slide and rail construction with a complete coolant system and roller bearing arbor support.
* This model features LED load indicator with oil bath gearbox.
* Spindle is MT3.
* Comes with 12 month warranty.
MAG/DRILL: EUROBOOR ECO-80/4 80MM CAPACITY
SKU:
DSM360433
* Euorbor ECO-80/4 Magnetic Drilling system with 1.8kW motor to cope with the heaviest of work.
* The automatic drilling system runs on high precision slide and rail construction with a complete coolant system and roller bearing arbor support.
* Very long stroke.
* Spindle is MT3.
* Comes with 12 month warranty.
MAG/DRILL: EUROBOOR ECO-100/4 100MM CAPACITY
SKU:
DSM360434
* Euorbor ECO 100/4 Magnetic Drilling system with 1.9kW motor to cope with the heaviest of work.
* The automatic drilling system runs on high precision slide and rail construction with a complete coolant system and roller bearing arbor support.
* This model features LED load indicator with oil bath gearbox
* Spindle is MT3.
* Comes with 12 month warranty

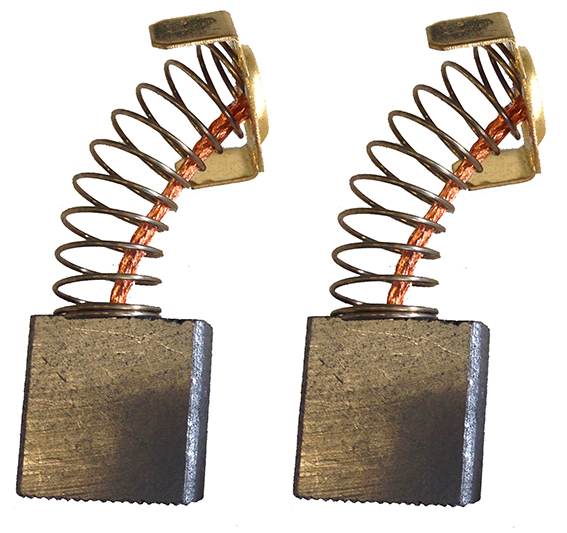

EUROBOOR ECO-30: CARBON BRUSHES ( PAIR)
