| Brand | Euroboor |
|---|---|
| Model | EC0-50-T |
| Cap. Annular Cutters (mm) | 50 |
| Cap. Twist Drills (mm) | 23 |
| Cap. Countersinking (mm) | 55 |
| Threading (M) | M20 |
| Stroke (mm) | 170 |
| Weight (kg) | 13.5 |
| Magnet L x W (mm) | 170 x 85 |
| Magnetic Force (kg) | 1,850 |
| Speeds (no.) | Variable |
| No-Load Speed (rpm) | 100 – 530 |
| Load Speed (rpm) | 250 – 460 |
| Spindle | MT2 / Weldon |
| Voltage (V) | 240 |
| Motor Power (kW) | 1.2 |
| Weight Nett/GrossVolume | 20.1 |
| Volume | |
| Packing Size L x W x H |
Description
SKU : DSM360412
Price per Unit
$3,405.00 (Exc GST)
$3,915.75 (Inc GST)
FEATURES:

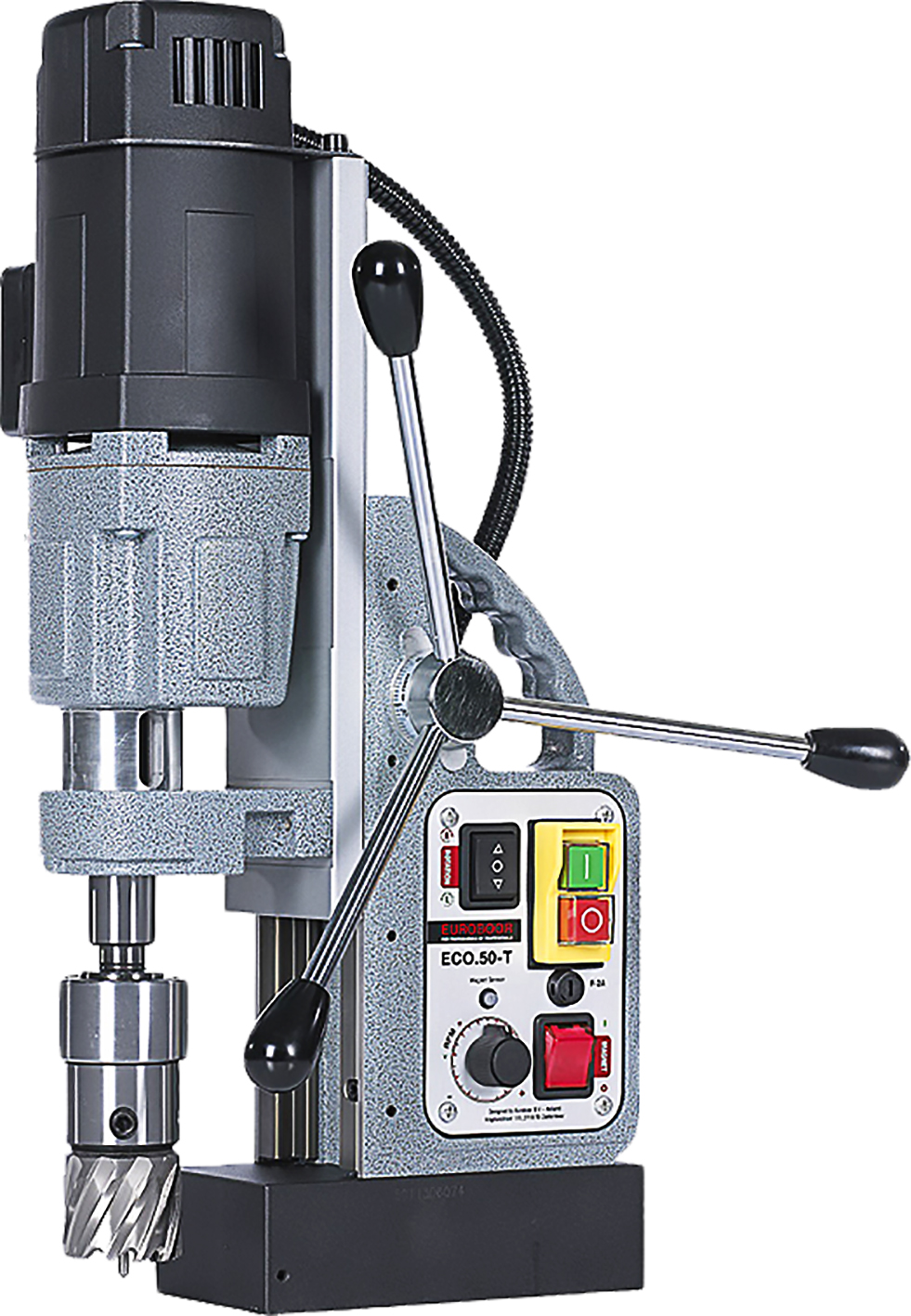

* Euorboor ECO-52-T Magnetic Drilling system with 1.375 motor to cope with the heaviest of work.
* Lightweight and compact.
* The drilling system features a complete coolant system and roller bearing arbor support.
* Two speed gearbox.
* Left & right rotation.
* Comes with 12 month warranty.
| Weight | 20.1 kg |
|---|
Specifications
