| Brand | Euroboor |
|---|---|
| Model | EC0-32 |
| Cap. Annular Cutters (mm) | 32 |
| Cap. Twist Drills (mm) | 13 |
| Cap. Countersinking (mm) | 45 |
| Threading (M) | N.A. |
| Stroke (mm) | 90 |
| Weight (kg) | 8.5 |
| Magnet L x W (mm) | 160 x 80 |
| Magnetic Force (kg) | 1,500 |
| Speeds (no.) | 1 |
| No-Load Speed (rpm) | 775 |
| Load Speed (rpm) | 400 |
| Spindle | Weldon |
| Voltage (V) | 240 |
| Motor Power (kW) | 1 |
| Weight Nett/Gross | 12.6kg |
| Volume | 0.0265 |
| Packing Size L x W x H |
Description
SKU : DSM360404
Price per Unit
$1,800.00 (Exc GST)
$2,070.00 (Inc GST)
FEATURES:

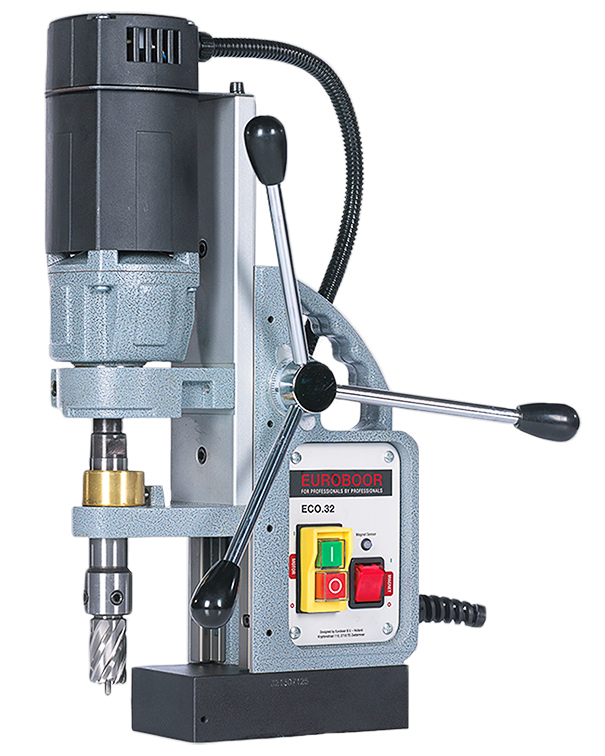

* Euorboor ECO-32- Magnetic Drilling system with 1kW motor to cope with the heaviest of work.
* At 12.6kg it is lightweight and compact.
* The drilling system features a complete coolant system and roller bearing arbor support.
* Easily mounts twist drills up to 13mm diameter.
* Comes with 12 month warranty.
| Weight | 12.6 kg |
|---|---|
| Dimensions | 0.45 × 0.28 × 0.21 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
