| DESCRIPTION | Mounting Instructions |
|---|---|
| MODEL | All |
| MACHINE TAPER | JT3, JT6 JT33 B16, B18, B22 |
| WEIGHT NETT/GROSS | 0.340kg |
| VOLUME | 0.0003cm |
Description
SKU : MSH300610
Price per Unit
$0.00 (Exc GST)
$0.00 (Inc GST)
FEATURES:

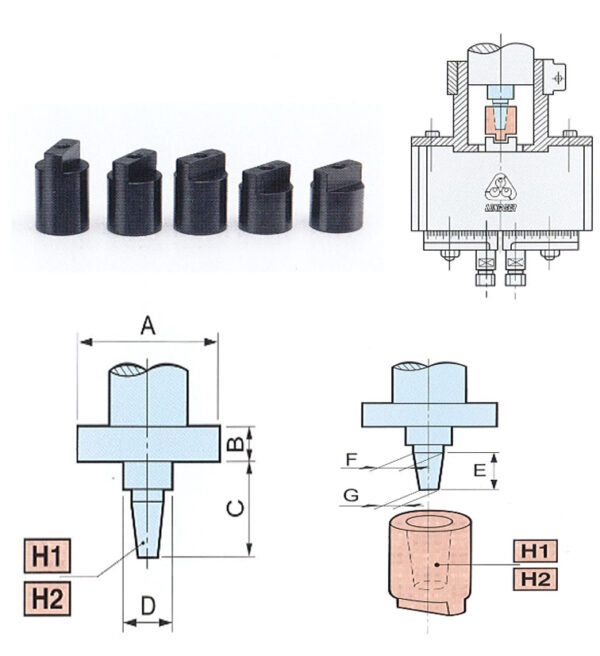

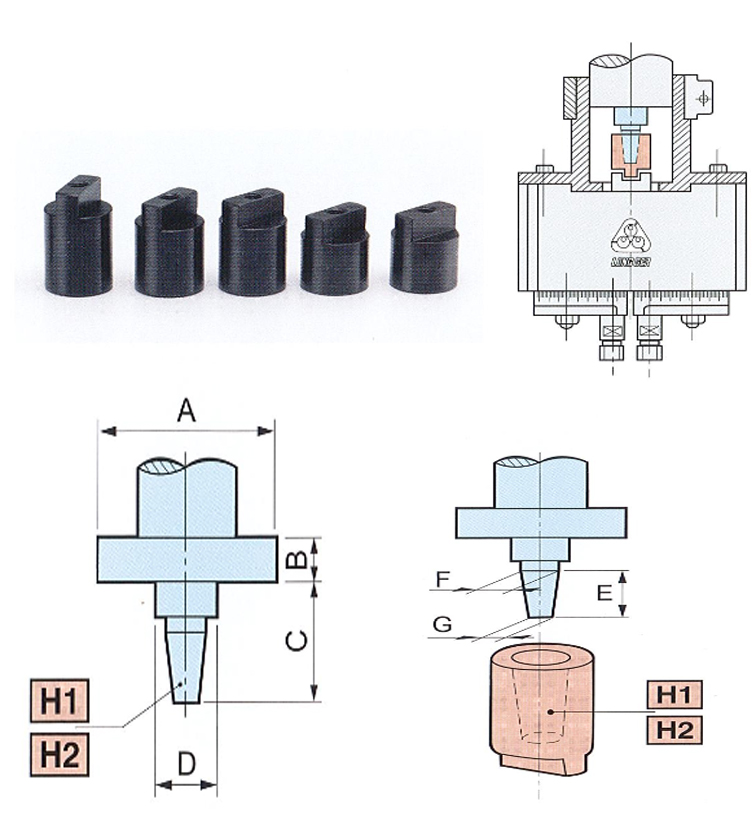

* This is the mounting diagram when fitting to a drilling machine with Jacobs Taper spindle
| Weight | 0.34 kg |
|---|---|
| Dimensions | 0.12 × 0.05 × 0.05 cm |
