LONG GER: MORSE TAPER MOUNT FOR MULTI SPINDLE HEAD

* Multi-heads are ideally suited to general and small batch production runs of components having equally spaced holes where single spindle set-ups prove uneconomic * This 2 spindle head has a range from 13.5 - 73.5mm * Flange mount to machine * Drive dog options: MT 1,2,3,4 * Reversable * Coller chuck with ER8 collets * Suitable for tapping operations * Other configerations available on request

* This T-121 KTK multi spindle head is a two spindle head which is adjustable to suit multiple hole drilling * Designed to fit the KTK drilling machines but adaptal to other models

* This is a 3 spindle (circular) boring head * Range is from 22.0 - 82mm * Flange mount to machine with opional drive tapers of MT 1, 2,3,4 tapers * Collet fixing for drill bits * Other configerations available on request

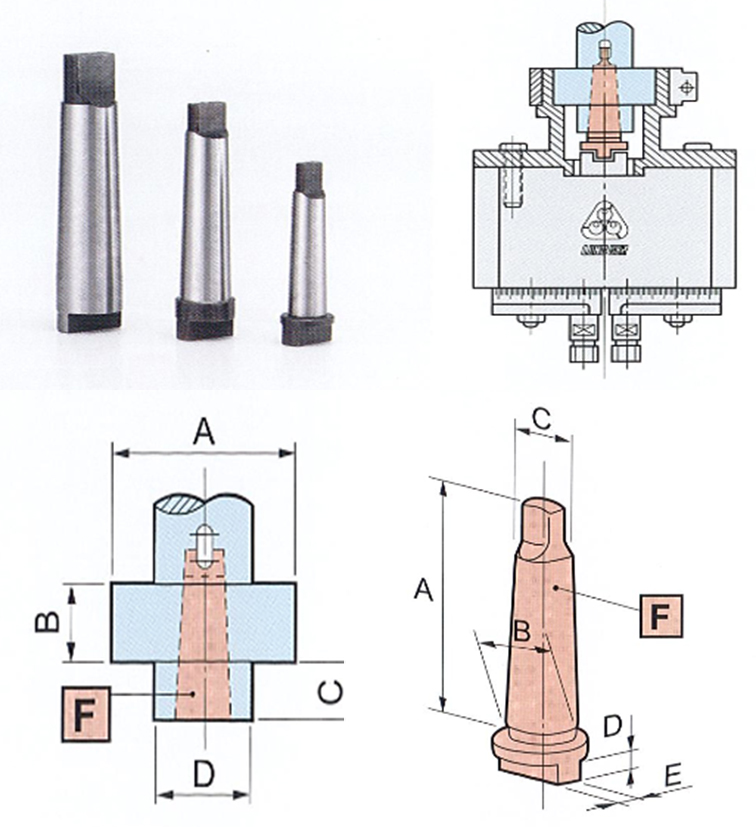

* This is the mounting diagram when fitting to a drilling machine with Jacobs Taper spindle
