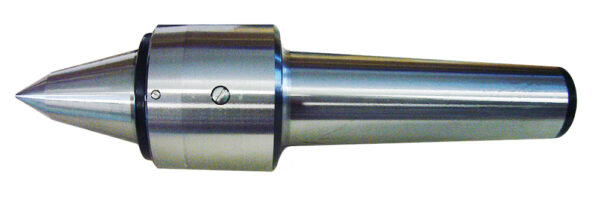

| DESCRIPTION | Extened Point Live Centre |
|---|---|
| SHANK TAPER | MT3 |
| BRAND | Skoda – (Czech Republic) |
| CONE TAPER | 60Deg |
| CONE LENGTH | |
| MAX SPEED | 5000rpm |
| MAX LOAD | 320kg |
| BODY DIAMETER | |
| WEIGHT NETT/GROSS | 0.894/0.899kg |
| VOLUME | 0.0004cm |
Description
SKU : LLC9105052
Price per Unit
$295.00 (Exc GST)
$339.25 (Inc GST)
FEATURES:
* This quality extended point live centre is manufactured in the Czech Republic
* Hardened and precision ground to 60-65RC
* Skoda live centres are known for their quality and long service record
* European quality – manufactured in the Czech Republic
* Skoda factory which has a long history of manufacturing quality products
* The rotating spindle is extended right through the tapered shank.
* Two specially designed adjustable needle-roller bearings carry all radial loads.
* A heavy duty ball thrust bearing takes all axial thrust.
* Thermal expansion and shock loads are absorbed by a special compensator spring.
* Complete protection of bearings from the ingress of coolant, dirt or swarf is provided by the built-in oil seal, which also prevents loss of lubricant.
| Weight | 0.899 kg |
|---|---|
| Dimensions | 0.17 × 0.05 × 0.05 cm |
