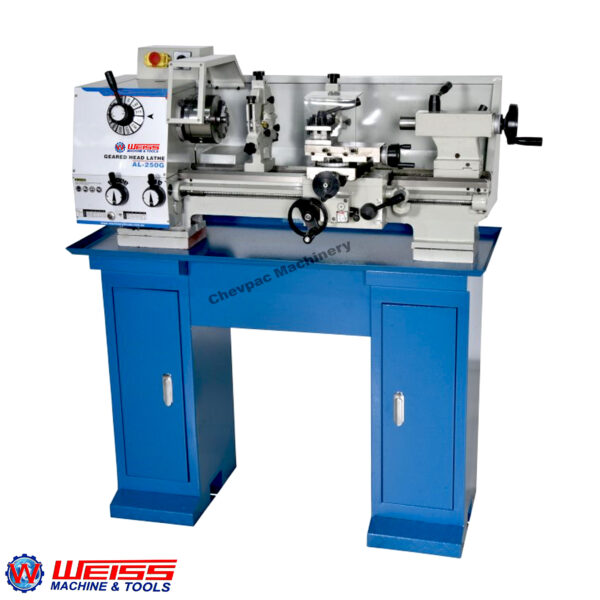

LATHE: WM-250G 250 X 500 X 26MM BORE 1 PHASE
$3,290.00
* Most economical, widely useful hobby lathe
* Induction hardened & precision ground V-way beds.
* Tailstocks can be offset for turning tapers.
* Large MT4 spindle bore
* New enclosed quick-change gear box
* Precise cuts with cross & longitudinal powerfeed
* Includes change gears for metric & imperial threading.
* Righthand & lefthand thread cutting is available.
* Spindle supported by high precision bearings.
* Adjustable gibs for slideways
* Tailstock can be offset for turning taper.Tolerance test certificate, test flow chart included
* Stand sold seperately
functions. .
| Weight | 202 kg |
|---|---|
| Dimensions | 1.2 × 0.61 × 0.62 cm |
Description
| Swing Over Bed (mm) | 250 |
|---|---|
| Swing Over X-slide (mm) | 150 |
| Swing Over Gap (mm) | N/A |
| Between Centres (mm) | 500 |
| Bed Width (mm) | 140 |
| Spindle Nose | Threaded |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 80 – 1,600 |
| Spindle Bore (mm) | 26 |
| Spindle Taper | MT3 |
| Metric Threading (M) | 0.25 – 2.5 |
| Imperial Threading (tpi) | 12 – 96 |
| Tailstock Taper | MT3 |
| Tool Height (mm) | 12 |
| Motor (kW) | 0.75 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 190 / 202 |
| Volume | 0.4538cm |
| Packing Size L x W x H (mm) | 1,200 x 610 x 620 |
