| Swing Over Bed (mm) | 210 |
|---|---|
| Swing Over X-slide (mm) | 115 |
| Swing Over Gap (mm) | No Gap |
| Between Centres (mm) | 400 |
| Bed Width (mm) | 100 |
| Spindle Nose | Threaded |
| Speeds (no.) | Variable |
| Speed Range (rpm) | 50 – 2,500 |
| Spindle Bore (mm) | 20 |
| Spindle Taper | MT3 |
| Metric Threading (M) | 0.3 – 3.0 |
| Imperial Threading (tpi) | 10 – 44 |
| Tailstock Taper | MT2 |
| Tool Height (mm) | 12 |
| Motor (kW) | 0.55 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 105 |
| Volume | 0.4028cm |
| Packing Size L x W x H (mm) | 1,060 x 760 x 500 |
Description
SKU : L--165185
Price per Unit
$2,950.00 (Exc GST)
$3,392.50 (Inc GST)
FEATURES:

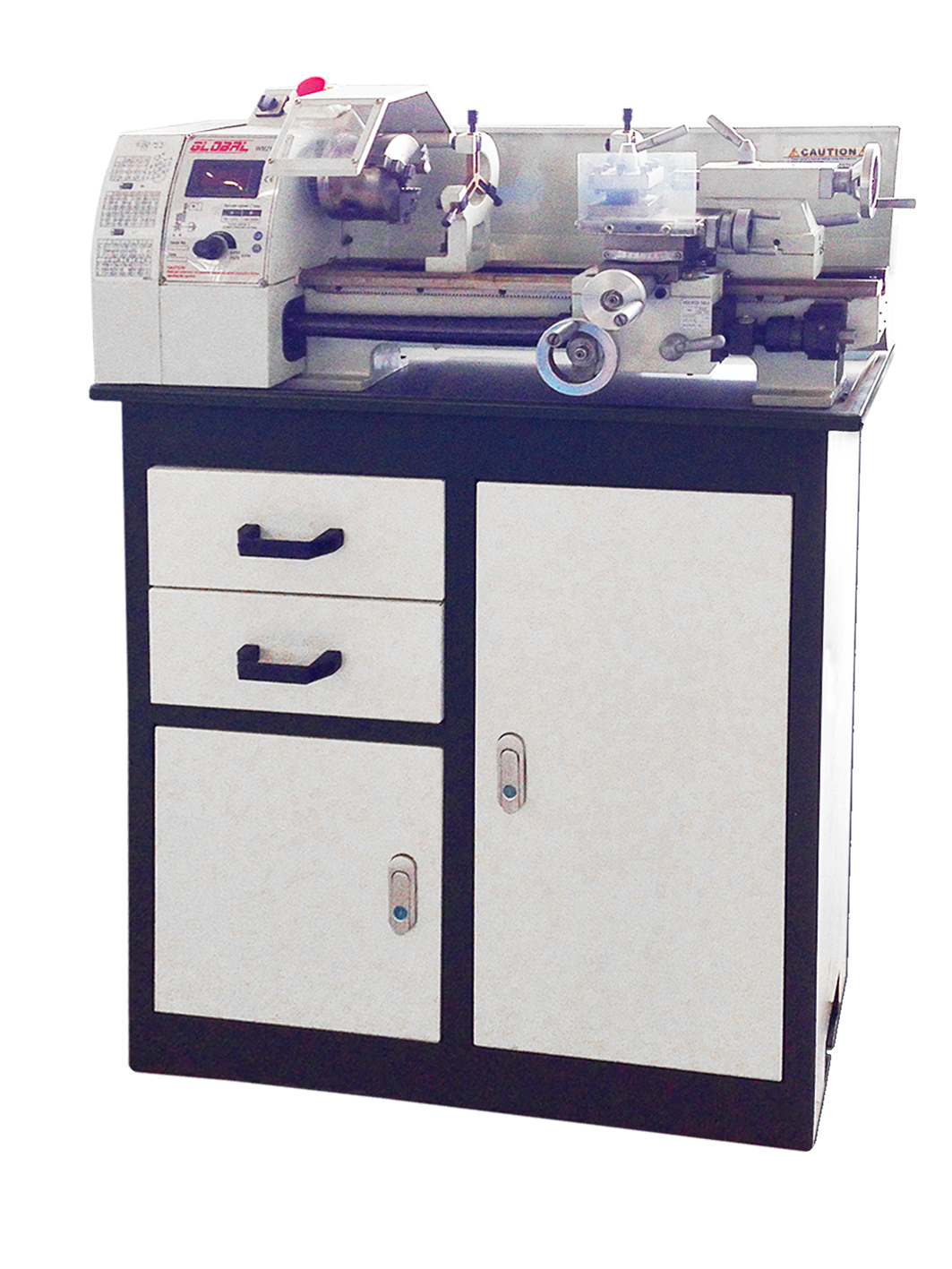

* Compact lathe with variable speed control.
* Easy to read digital readout speed display.
* Induction hardened & precision ground bedways.
* Forward/reverse & emergency stop switches.
* Tailstock can be offset for turning tapers.
* Transparent toolpost guard.
* Spindle supported by high precision bearings.
* Adjustable slideway gibs.
* Ideal for hobbyists and small workshops.
* Stand is sold seperately.
| Weight | 105 kg |
|---|---|
| Dimensions | 1.06 × 0.76 × 0.5 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
LATHE: GOSAN 1740A 7.5HP
SKU:
L--109170
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: GOSAN 1760AV VARIABLE SPEED
SKU:
L--109182
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: GOSAN 2060AV VARIABLE SPEED
SKU:
L--109234
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.

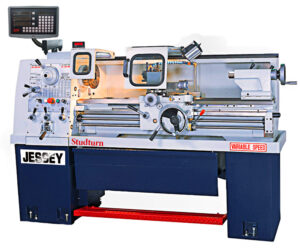

LATHE: JESSEY STUDTURN 1430 (TAIWAN)
