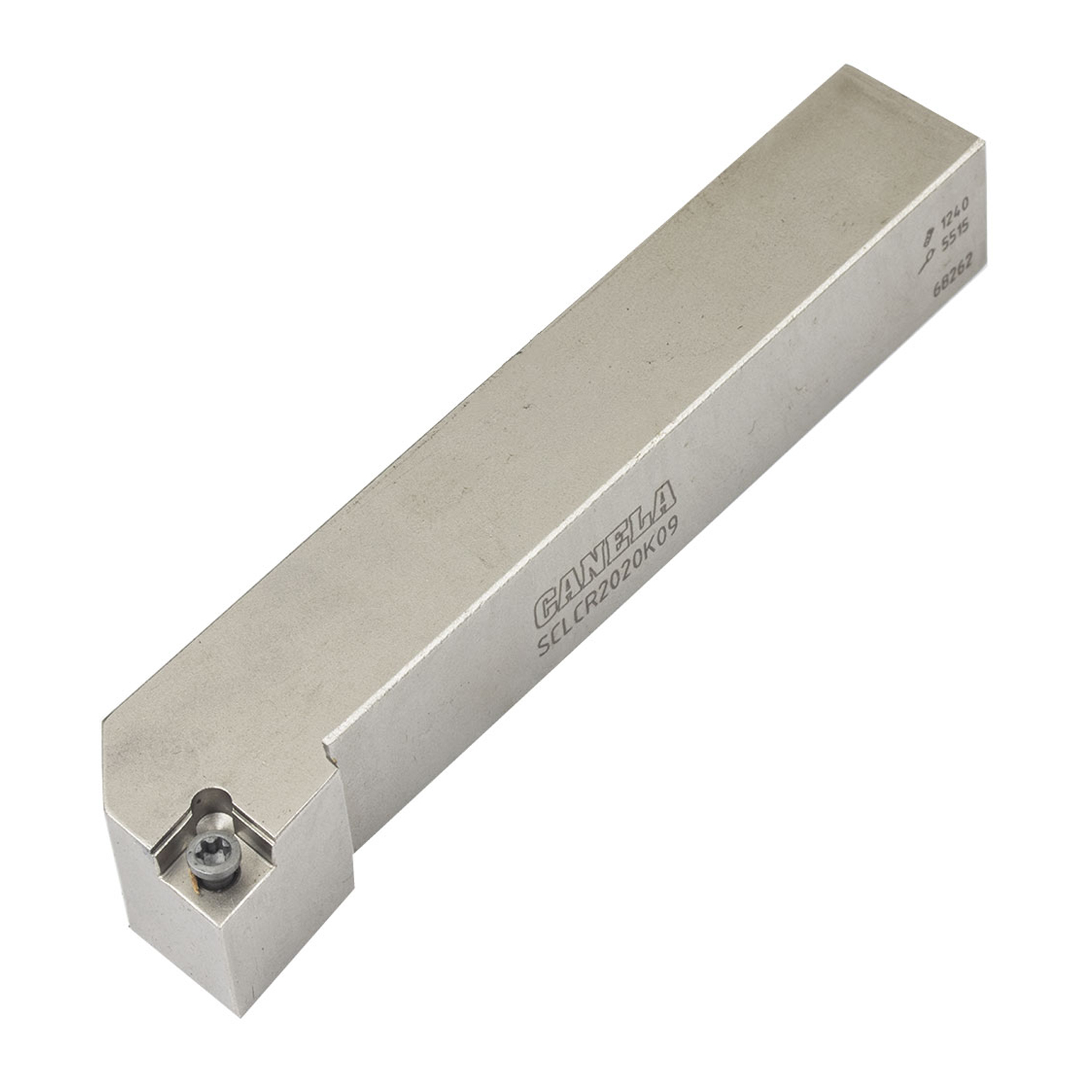

| DESCRIPTION | Lathe Tool Holder |
|---|---|
| MODEL | SCLCR 2020-K09 |
| SHANK SIZE | 20.0 X 20.0MM |
| ANGLE | Right Hand |
| INSERT TYPE | Ltt800278 |
| WEIGHT NETT/GROSS | 0.560/0.560kg |
| VOLUME | 0.0001cm |
| INSERT CODE |
Description
SKU : LTH700560
Price per Unit
$101.76 (Exc GST)
$117.02 (Inc GST)
FEATURES:
| Weight | 0.56 kg |
|---|---|
| Dimensions | 0.16 × 0.04 × 0.04 cm |
Specifications
Description
Shipping & Delivery
