LATHE: L22 GM6256 560 X 1500 X 103MM BORE
Excl. GST: $30,000.00
Incl. GST: $34,500.00
Incl. GST: $34,500.00

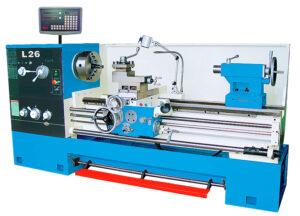

LATHE: L26 GM6266 660 X 2000 X 105MM BORE (DISCONTINUED)
Excl. GST: $0.00
Incl. GST: $0.00
Incl. GST: $0.00
LATHE: L22 GM6256 560 X 2000 X 103MM BORE
Excl. GST: $27,100.00
Incl. GST: $31,165.00
* Precision ground & supersonic frequency hardened bedways, with double wall structure for super rigidity.
* Highly accurate & rigid spindle system.
* Large 103mm spindle bore.
* Optimized design of the main drive, with hardened & ground headstock gears.
* Fitted with 2 axis digital readout, taper turning attachment.
* Over 200 thread cutting options available, in metric, whitworth, module & DP, with no gear changing required.
* Adjustable auto stop mechanism for longitudinal travel.
* Gap bed for larger diameter work pieces.
| Weight | 3555 kg |
|---|---|
| Dimensions | 3.4 × 1.15 × 1.75 cm |
Description
| Swing Over Bed (mm) | 560 |
|---|---|
| Swing Over X-slide (mm) | 355 |
| Swing Over Gap (mm) | 785 |
| Between Centres (mm) | 2,000 |
| Bed Width (mm) | 350 |
| Spindle Nose | D1-8 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 25 – 1,600 |
| Spindle Bore (mm) | 103 |
| Spindle Taper | 113mm dia (1:20) |
| Metric Threading (M) | 0.2 – 14.0 |
| Imperial Threading (tpi) | 2 – 112 |
| Tailstock Taper | MT5 |
| Tool Height (mm) | 20 |
| Motor (kW) | 7.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 3,070 / 3,555 |
| Volume | 6.8425cm |
| Packing Size L x W x H (mm) | 3,400 x 1,150 x 1,750 |
