| Swing Over Bed (mm) | 560 |
|---|---|
| Swing Over X-slide (mm) | 355 |
| Swing Over Gap (mm) | 785 |
| Between Centres (mm) | 1,500 |
| Bed Width (mm) | 350 |
| Spindle Nose | D1-8 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 25 – 1,600 |
| Spindle Bore (mm) | 103 |
| Spindle Taper | 113mm dia (1:20) |
| Metric Threading (M) | 0.2 – 14.0 |
| Imperial Threading (tpi) | 2 – 112 |
| Tailstock Taper | MT 5 |
| Tool Height (mm) | 20 |
| Motor (kW) | 7.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 2,700 / 2,800 |
| Volume | 6.0375cm |
| Packing Size L x W x H (mm) | 3,000 x 1,150 x 1,750 |

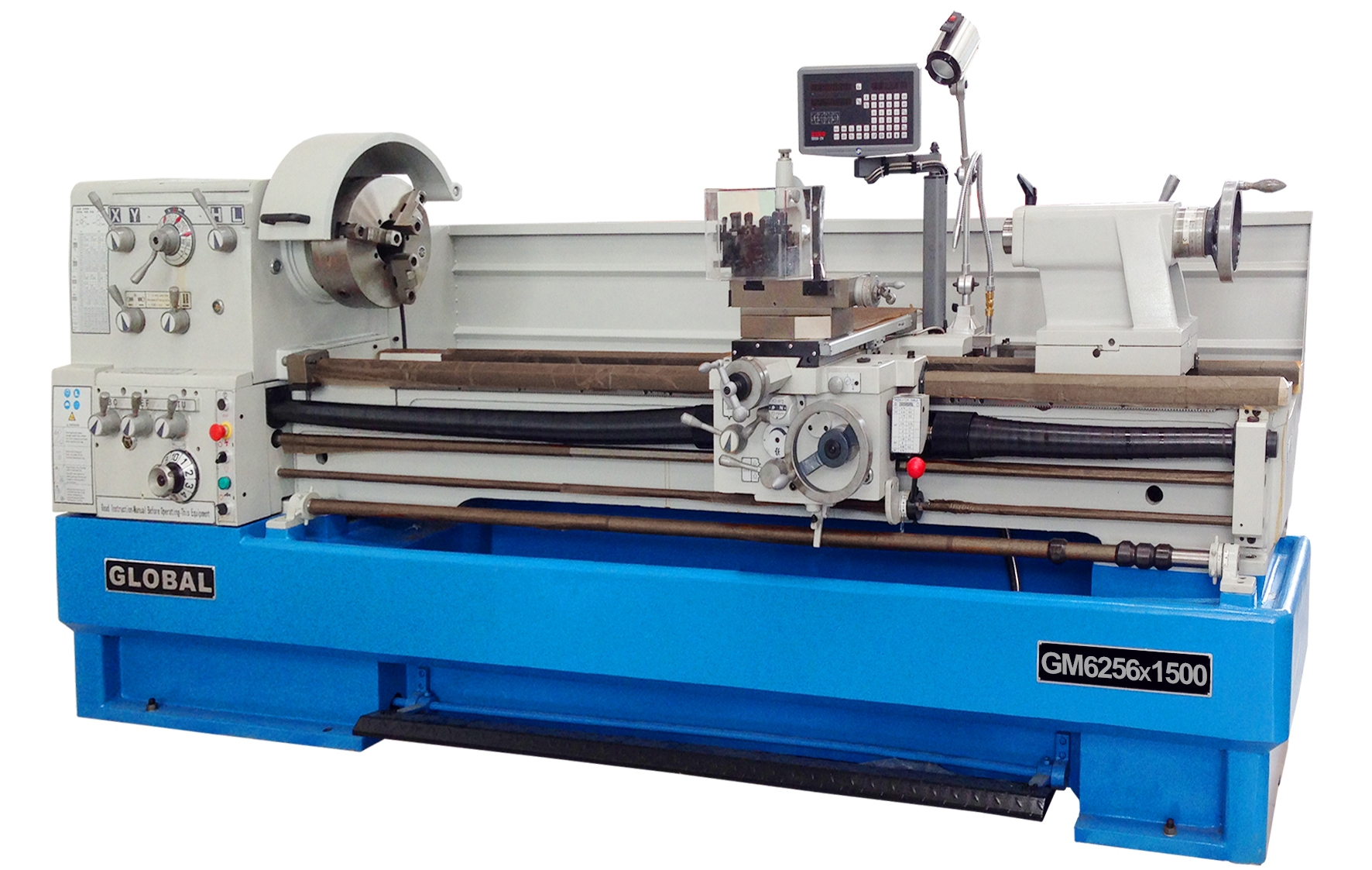

Description
SKU : L--120032
Price per Unit
$30,000.00 (Exc GST)
$34,500.00 (Inc GST)
FEATURES:
* Precision ground & supersonic frequency hardened bedways, with double wall structure for super rigidity.
* Highly accurate & rigid spindle system.
* Large 103mm spindle bore.
* Optimized design of the main drive, with hardened & ground headstock gears.
* Fitted with 2 axis digital readout, taper turning attachment & quickchange toolpost.
* Over 200 thread cutting options available, in metric, whitworth, module & DP, with no gear changing required.
* Adjustable auto stop mechanism for longitudinal travel.
* Gap bed for larger diameter work pieces.
| Weight | 2800 kg |
|---|---|
| Dimensions | 3 × 1.15 × 1.75 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
LATHE: GOSAN 1440V 356 X 1000MM TURNPOWER 3PH VARIABLE SPEED
SKU:
L--109152
* Gosan has been building lathes for over 35 years.
* Heavy duty geared head lathe.
* Hardened and ground gears.
* Hardened and ground bed-way.
* Open type chip tray can be pulled out easily to remove chip.
* Foot brake giving rapid braking.
* Emergency stop button equipped on the front of headstock.
* Jog button for easy gear engagement and inching spindle.
* Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.
LATHE: GOSAN 1740AV 434 X 1000MM VARIABLE SPEED
SKU:
L--109172
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: GOSAN 1760AV 434 X 1500MM VARIABLE SPEED
SKU:
L--109182
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: JESSEY MAJOR 510 X 1000MM (TAIWAN)
SKU:
L--110160
* Rigid construction beds are induction hardened and precision ground.
* Harden and ground spindle & gears in headstock for high speed running with low noise.
* 'One shot' oil pump on saddle provides excellent slideways central lubrication.
* Fitted with 2 axis digital readout & quickchange toolpost.
* Two grouped change levers for 16 spindle speeds.
* Moveable front chip tray allows easy chip cleaning.
* Adjustable apron clutch for bi-directional feed pressure adjustment.
* Comprehensive range of metric, imperial, diametral & modular threads.
* Made in Taiwan.
LATHE: GL-6236K 360 x 1000 X 51MM BORE 1 PHASE
SKU:
L--120005
* Hardened precision ground gears in headstock.
* Induction hardened precision ground V way bedways.
* D1-5 spindle supported by high quality tapered roller bearings.
* Large 51mm spindle bore for bar work.
* Gap bed for larger diameter work pieces.
* Independent leadscrew & feed rod.
* Automatic feed & threading.
* Fitted with digital readout, quickchange toolpost.
LATHE: 420 X 1000 X 52MM BORE, 3 PHASE
SKU:
L--120006
* This D420 lathe comes with hardened and ground bedways.
* Hardened and ground gears in the headstock to offer a long service life.
* Precision headstock taper rolling bearings on the spindle.
* Integrated cast iron floor stand.
* Three points support for spindle.
* Two speed motor.
* Digital readout and quickchange toolpost.
LATHE: L22 GM6256 560 X 2000 X 80MM BORE
SKU:
L--120030
* Precision ground & supersonic frequency hardened bedways, with double wall structure for super rigidity.
* Highly accurate & rigid spindle system.
* Optimized design of the main drive, with hardened & ground headstock gears.
* Fitted with 2 axis digital readout, taper turning attachment & quickchange toolpost.
* Over 200 thread cutting options available, in metric, whitworth, module & DP, with no gear changing required.
* Adjustable auto stop mechanism for longitudinal travel.
* Gap bed for larger diameter work pieces.
LATHE: L22 GM6256 560 X 2000 X 103MM BORE
SKU:
L--120033
* Precision ground & supersonic frequency hardened bedways, with double wall structure for super rigidity.
* Highly accurate & rigid spindle system.
* Large 103mm spindle bore.
* Optimized design of the main drive, with hardened & ground headstock gears.
* Fitted with 2 axis digital readout, taper turning attachment.
* Over 200 thread cutting options available, in metric, whitworth, module & DP, with no gear changing required.
* Adjustable auto stop mechanism for longitudinal travel.
* Gap bed for larger diameter work pieces.
