Swing Over Bed (mm) | 560 |
---|---|
Swing Over X-slide (mm) | 350 |
Swing Over Gap (mm) | 788 |
Between Centres (mm) | 1,000 |
Bed Width (mm) | 350 |
Spindle Nose | D1-8 |
Speeds (no.) | 12 |
Speed Range (rpm) | 25 – 1,600 |
Spindle Bore (mm) | 80 |
Spindle Taper | MT7 |
Metric Threading (M) | 0.2 – 14 |
Imperial Threading (tpi) | 2 – 112 |
Tailstock Taper | MT5 |
Tool Height (mm) | 20 |
Motor (kW) | 7.5 |
Voltage (V) | 415 |
Weight Nett / Gross (kg) | 2,160 / 2,555 |
Volume | 2.7115cm |
Packing Size L x W x H (mm) | 1,450 x 1,100 x 1,700 |

TOOL STORAGE CABINET: HEAVY DUTY
$2,100.00

LATHE: L22 GM6256 560 X 1500 X 80MM BORE
$23,800.00
Availability : Enquire Now
Price per Unit
ex-gst
$18,500.00Inc-gst

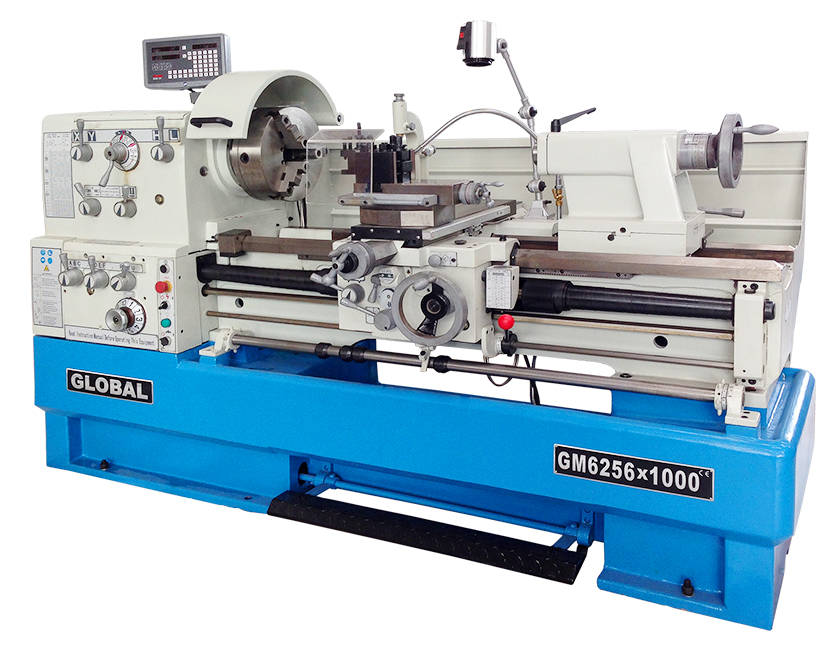

$21,275.00LATHE: L22 GM6256 560 X 1000 X 80MM BORE
Description
SKU : L--120028
Price per Unit
$18,500.00 (Exc GST)
$21,275.00 (Inc GST)
FEATURES:
* Precision ground & supersonic frequency hardened bedways, with double wall structure for super rigidity.
* Highly accurate & rigid spindle system.
* Optimized design of the main drive, with hardened & ground headstock gears.
* Fitted with 2 axis digital readout, taper turning attachment & quickchange toolpost.
* Over 200 thread cutting options available, in metric, whitworth, module & DP, with no gear changing required.
* Adjustable auto stop mechanism for longitudinal travel.
* Gap bed for larger diameter work pieces.
Weight | 2555 kg |
---|---|
Dimensions | 1.45 × 1.1 × 1.7 cm |
Specifications
Description
