| Swing Over Bed (mm) | 434 |
|---|---|
| Swing Over X-slide (mm) | 277 |
| Swing Over Gap (mm) | 630 |
| Between Centres (mm) | 1,000 |
| Bed Width (mm) | 300 |
| Spindle Nose | D1-6 |
| Speeds (no.) | Variable |
| Speed Range (rpm) | 20 – 2,000 |
| Spindle Bore (mm) | 58 |
| Spindle Taper | MT6 |
| Metric Threading (M) | 0.2 – 14 |
| Imperial Threading (tpi) | 2 – 72 |
| Tailstock Taper | MT4 |
| Tool Height (mm) | 25 |
| Motor (kW) | 3.75 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 1,500 / 1,600 |
| Volume | 4.5995cm |
| Packing Size L x W x H | 2340 x 1170 x 1680 |
Description
SKU : L--109172
Price per Unit
$31,250.00 (Exc GST)
$35,937.50 (Inc GST)
FEATURES:

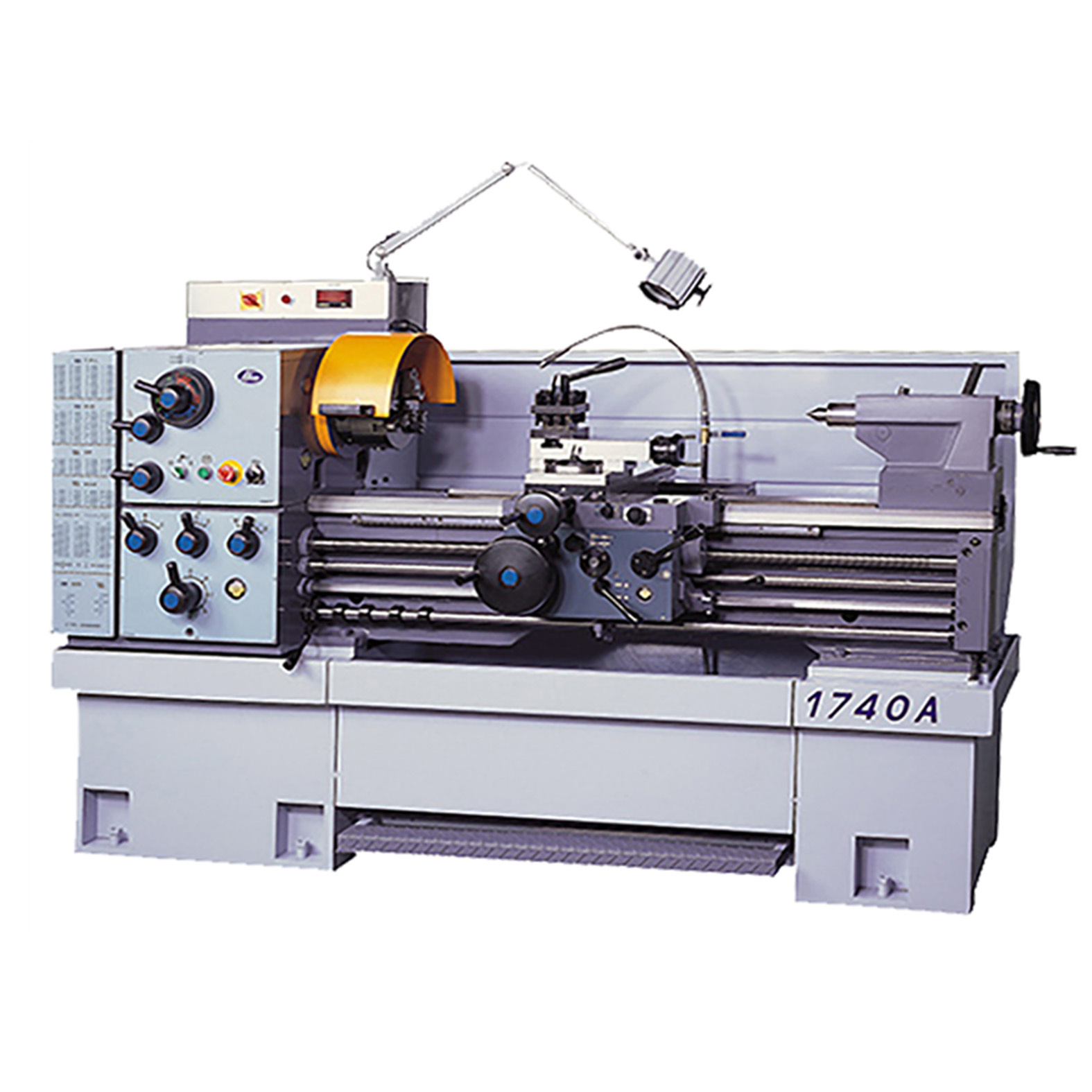

* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
