LATHE: GL-1330 330 X 750MM 38MM X 750 38 BORE, 3 PHASE
Excl. GST: $8,900.00
Incl. GST: $10,235.00
Incl. GST: $10,235.00
LATHE: GL-1640 410 X 1000MM 80MM BORE, 3 PHASE
Excl. GST: $18,700.00
Incl. GST: $21,505.00
Incl. GST: $21,505.00
LATHE: GL-1440GHB 360 X 1000MM 38MM BORE, 3 PHASE
Excl. GST: $7,900.00
Incl. GST: $9,085.00
* Induction hardened & precision ground V-way beds.
* Hardened & ground headstock gears.
* Fully cast bed for make this machine very rigid.
* Adjustable auto stop mechanism for longitudinal travel.
* Sino 2 axis digital readout.
* Coolant pump & tank system.
* No gear changing required for metric or imperial threads.
* Fitted with a work lamp & foot brake for added safety.
* Italian style quickchange toolpost.
* Gap bed for larger diameter work pieces.
* Independent leadscrew & feed rod.
| Weight | 695 kg |
|---|---|
| Dimensions | 1.93 × 0.76 × 1.5 cm |
In stock
Description
| Swing Over Bed (mm) | 360 |
|---|---|
| Swing Over X-slide (mm) | 195 |
| Swing Over Gap (mm) | 530 |
| Between Centres (mm) | 1,000 |
| Bed Width (mm) | 186 |
| Spindle Nose | D1-4 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 40 – 1,800 |
| Spindle Bore (mm) | 38 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.45 – 10.0 |
| Imperial Threading (tpi) | 3-1/4 – 80 |
| Tailstock Taper | MT3 |
| Tool Height (mm) | 20 |
| Motor (kW) | 1.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 595 / 650 |
| Volume | 2.2002cm |
| Packing Size L x W x H (mm) | 1,930 x 760 x 1,500 |
Shipping & Delivery
Related products
LATHE: GOSAN 1440 356 X 1000MM 1PH VARIABLE SPEED
SKU:
L--109150
* Gosan has been building lathes for over 35 years.
* Heavy duty geared head lathe.
* Hardened and ground gears.
* Hardened and ground bed-way.
* Open type chip tray can be pulled out easily to remove chip.
* Foot brake giving rapid braking.
* Emergency stop button equipped on the front of headstock.
* Jog button for easy gear engagement and inching spindle.
* Extra safety switch shuts down machine entirely for changing belt or gear for threading cutting.

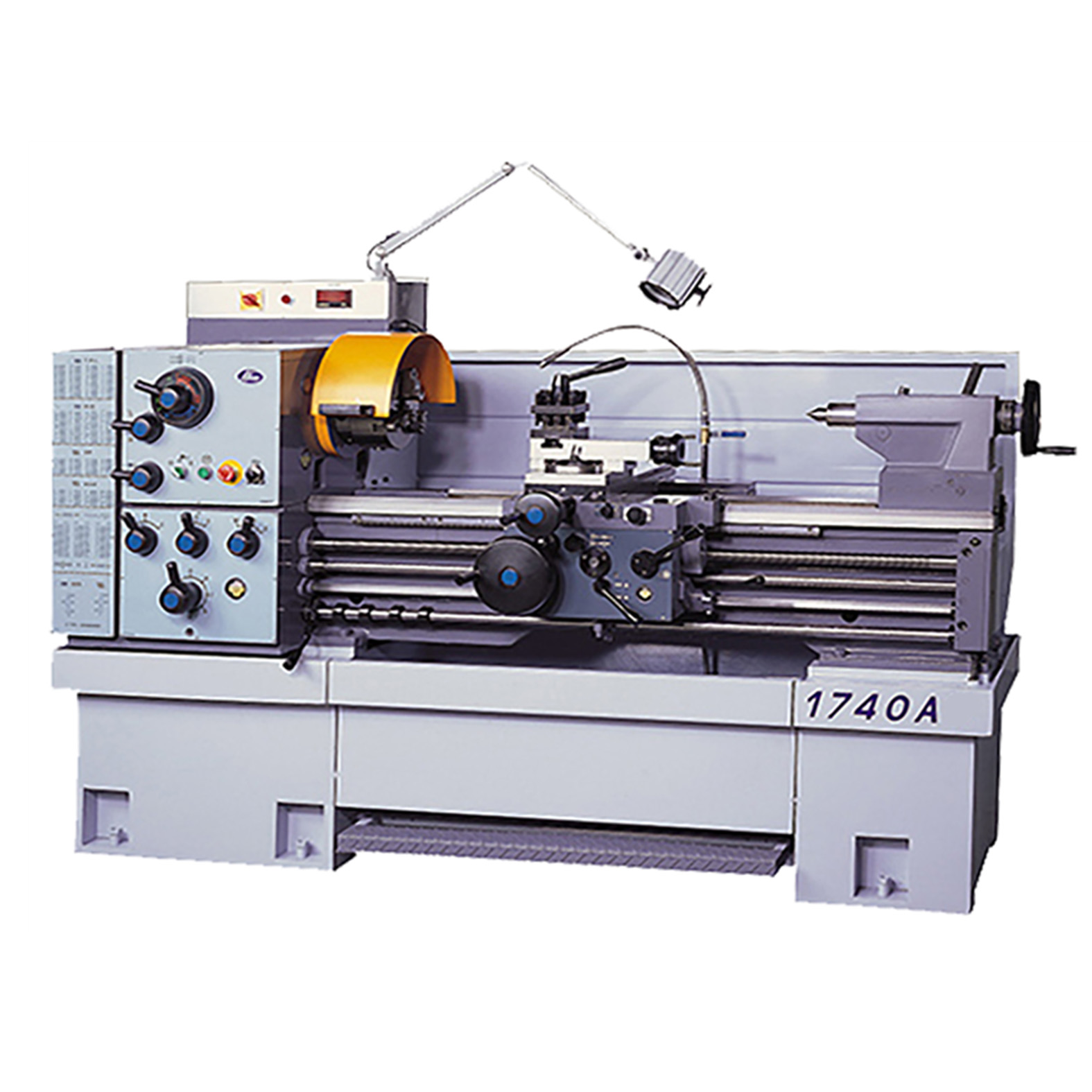

LATHE: GOSAN 1740A 434 X 1000MM 7.5HP
SKU:
L--109170
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: GOSAN 1760AV 434 X 1500MM VARIABLE SPEED
SKU:
L--109182
* Heavy duty geared head lathe, with hardened and ground gears.
* 3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.
* Spray lubrication system used for headstock.
* One shot lubrication pump for cross slide and bed-ways.
* Quick-change universal gearbox for inch, metric, DP and MP threading.
* Adjustable overload clutch in apron ensures proper cutting load.
* Cross slide screw is permanently immersed in oil and supported by thrust bearing.
* One piece base casting for maximum rigidity.
LATHE: AT-430 430 X 1100 X 58MM BORE (TAIWAN) TOP QUALITY
SKU:
L--110290
LATHE: GL-1860 460 X 1500MM 80MM BORE, 3 PHASE
SKU:
L--110334
* Large 80mm spindle bore makes this machine a very desirable machine for any workshop.
* Bed is hardened and ground offering a long wear resistant lifespan.
* All headstock gears are hardened and ground.
* No changing of gears required to cut metric or imperial threads.
* Auto stop mechanisim for longditudinal travel which can be set to the desired length.
* Full cast bed make this machine very rigid.
LATHE: GL-1440K 360 X 1000MM 40.0MM BORE 1PH
SKU:
L--120002
* One piece casting base make this lathe very sturdy under all turning conditions.
* Hardened precision ground gears in headstock.
* Induction hardened precision ground V way bedways.
* D1-4 spindle supported by high quality tapered roller bearings.
* Large 40mm spindle bore for bar work.
* Fitted with quickchange toolpost and digital readout.
LATHE: GH-1640 410 X 1000 X 52MM BORE, 3 PHASE
SKU:
L--120007
* This GH-1640 lathe comes with hardened and ground bedways.
* Headstock gears are hardened and ground to offer a long service life.
* Precision headstock taper rolling bearings on the spindle.
* Integrated cast iron floor stand.
* Three points support for spindle.
* Two speed motor.
* Very rigid machine.
LATHE: GL-6240F 400 X 1000 X 51MM BORE, 3 PHASE
SKU:
L--120010
* This GL-6240F lathe comes with hardened and ground bedways.
* Headstock gears are hardened and ground to offer a long service life.
* Precision headstock taper rolling bearings on the spindle.
* Integrated cast iron floor stand.
* Three points support for spindle.
* 16 Speed changes 45-1800rpm
* Very rigid machine
* Emergency stop buttons on both sides of the machine for added safety !
