| Swing Over Bed (mm) | 1,000 |
|---|---|
| Swing Over X-slide (mm) | 720 |
| Between Centres (mm) | 8,000 |
| Bed Width (mm) | 600 |
| Spindle Nose | ISO A2-11 |
| Speeds (no.) | 4 |
| Speed Range (rpm) | 5 – 630 |
| Spindle Bore (mm) | 105 |
| Metric Threading (M) | 1 – 120 |
| Imperial Threading (tpi) | 30 – 1/4 |
| Spindle Taper | MT6 |
| Motor (kW) | 18.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 11,000 / 11,500 |
| Volume | |
| Packing Size L x W x H (mm) |
Description
SKU : L--120156
Price per Unit
$145,000.00 (Exc GST)
$166,750.00 (Inc GST)
FEATURES:

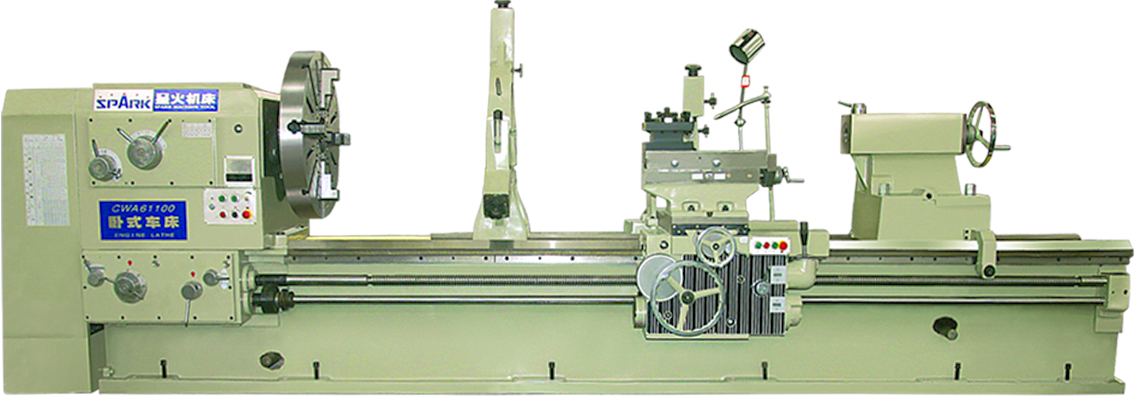

* This CWA61100 lathe offers precision ground & supersonic frequency hardened bedways.
* Double wall structure provides super rigidity and accuracy.
* Extra large 105mm spindle bore.
* Optimised design of the main drive.
* Precision ground headstock gears.
* Machine operation does not require gear changes.
* This lathe can turn up to 200 kinds of metric, whitworth, module & DP threads.
* Auto stop device and footbrake offer quick & effective stopping.
