| Swing Over Bed (mm) | 300 |
|---|---|
| Swing Over X-slide (mm) | 180 |
| Swing Over Gap (mm) | 430 |
| Between Centres (mm) | 900 |
| Bed Width (mm) | 180 |
| Spindle Nose | D1-4 |
| Speeds (no.) | 9 |
| Speed Range (rpm) | 75 – 1400 |
| Spindle Bore (mm) | 38 |
| Spindle Taper | MT5 |
| Metric Threading (M) | 0.4 – 7.0 |
| Imperial Threading (tpi) | 4 – 60 |
| Tailstock Taper | MT3 |
| Tool Height (mm) | 16 |
| Motor (kW) | 1.5 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 520 / 620 |
| Volume (m³) | 1.9031 |
| Packing Size L x W x H (mm) | 1,670 x 770 x 1,480 |

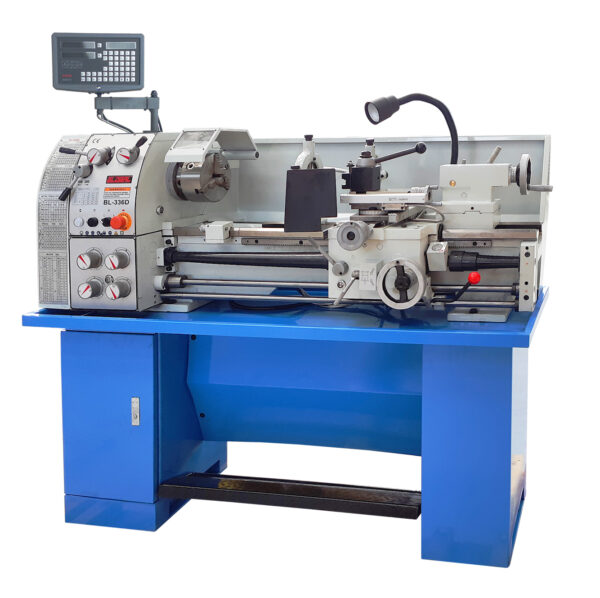

Description
SKU : L--120513
Price per Unit
$8,800.00 (Exc GST)
$10,120.00 (Inc GST)
FEATURES:
* Induction hardened & precision ground V-way beds.
* D1-4 Spindle is supported by high quality taper rolling bearing
* Automatic feed and threading are fully interlocked.
* Coolant pump & tank system.
* Fitted with a work lamp & foot brake for added safety.
* Quickchange toolpost for speedy tool changing.
* Gap bed for larger diameter work pieces.
* Independent leadscrew & feed rod.
* Carriage mounted spindle control lever.
* Tailstock can be offset for turning tapers.
