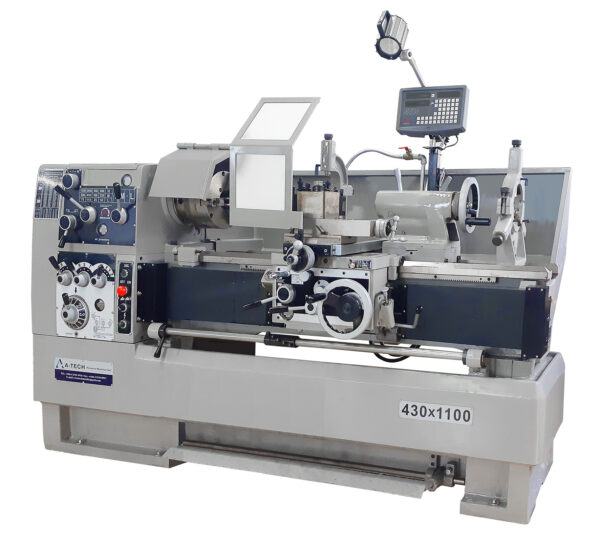

LATHE: AT-430 430 X 1100 X 58MM BORE (TAIWAN) TOP QUALITY
$29,850.00
* A-Tech lathes are manufactured in Taiwan
* This AT lathe is manufactured to exacting standards.
* Heavy duty with full cast bed.
* Good speed range
* Right hand wheel.
* Fitted with digital readout and quickchange toolpost
* Foot brake
* Metric leadscrew
* Spindle nose D1-6
| Weight | 1700 kg |
|---|---|
| Dimensions | 2.3 × 1 × 0.5 cm |
Description
| Swing Over Bed (mm) | 430 |
|---|---|
| Swing Over X-slide (mm) | 265 |
| Swing Over Gap (mm) | No Gap |
| Between Centres (mm) | 1,100 |
| Spindle Nose | D1-6 |
| Speeds (no.) | 12 |
| Speed Range (rpm) | 35 – 2,000 |
| Spindle Bore (mm) | 58 |
| Spindle Taper | MT6 |
| Metric Threading (M) | 0.2 – 14 (39 kinds) |
| Imperial Threading (tpi) | 12 – 72 (44 kinds) |
| Tailstock Taper | MT4 |
| Bed Width (mm) | 300 |
| Motor (kW) | 7.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 1,600 / 1,700 |
| Volume | 1.1500cm |
| Packing Size L x W x H (mm) | 2,300 x 1,000 x 500 |
