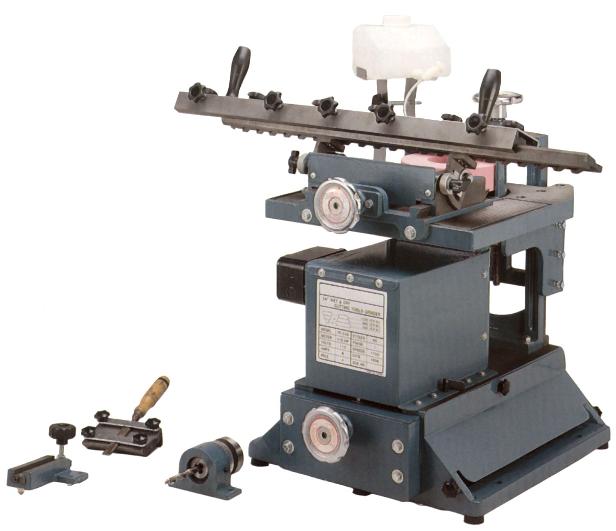

KNIFE GRINDER: YE-246N 24

* Main frame is cast iron well ribbed to provide rigid suport to the grinding Table carriage to ensure vibration free grinding. * Blade Fixture sits at a 40° angle with slotted plate for clamping, * Motor Grinding Head has a +/- 5° angle adjustment, Max rake angle is between 35° to 45° grinding angle. * Slideway guides consist of hardened and tempered steel strips to assure wear resistance * Carriage is a one peice casting and slides on water tight sealed bearing with eccentric adjustment to take up play between guide and carriage * Coolant is directed to the grinding area by means of a impeller on the end of the grinding spindle
