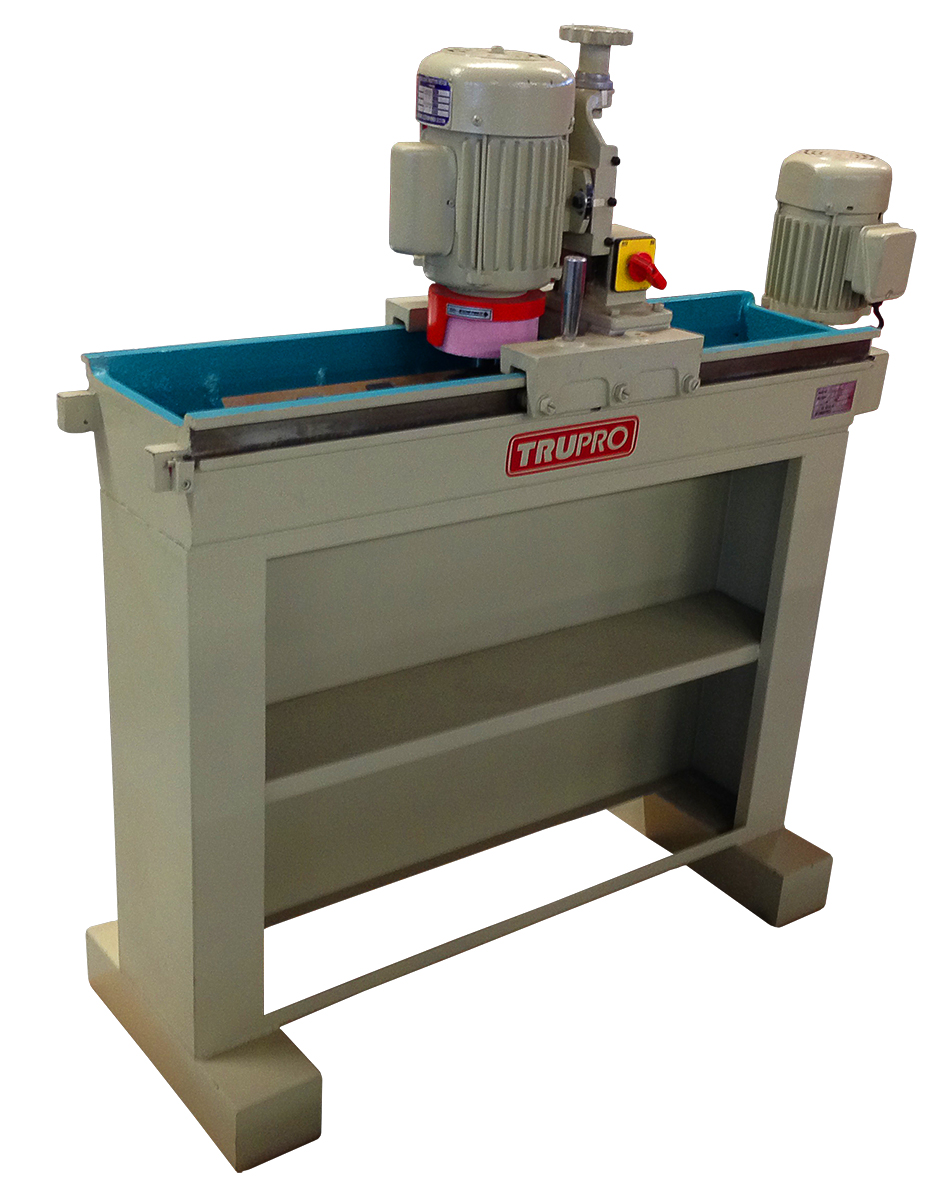

KNIFE GRINDER: CKKG-630 1PH

* Main frame is cast iron well ribbed to provide rigid suport to the grinding Table carriage to ensure vibration free grinding.
* Blade Fixture sits at a 40° angle with slotted plate for clamping,
* Motor Grinding Head has a +/- 5° angle adjustment, Max rake angle is between 35° to 45° grinding angle.
* Slideway guides consist of hardened and tempered steel strips to assure wear resistance
* Carriage is a one peice casting and slides on water tight sealed bearing with eccentric adjustment to take up play between guide and carriage
* Coolant is directed to the grinding area by means of a impeller on the end of the grinding spindle
