HYDRAULIC POWER PACK: 2.2KW 1PH 700 BAR 2 WAY
$1,750.00
* This HHB-630-II has a two way pump and is suitable for most applications.
* Lightweight and comes with carring handle.
* 3 position valves: advance, hold & retract.
* All pumps are equipped with pressure gauges to minimise the risk of overload,.
* Maunual valve and motor control internal pressure and relief valve prevents overloading
* Comes with a large 35 litre oil capacity reservior to suit multi-cylinder applications
* Will off long trouble free life in most work invoroments
* Working pressure 700 bar
| Weight | 62.4 kg |
|---|---|
| Dimensions | 0.5 × 0.38 × 0.7 cm |
In stock
Description
| Description | Hydraulic Power Pack |
|---|---|
| Model | HHB-630B=II |
| Description | Hydraulic Power Pack |
| Pump | Two Way |
| Motor Power (kW) | 2.2 |
| Low Pressure (Bar) | 20 |
| High Pressure (Bar) | 700 |
| Low Pressure Flow (L/min) | 10 |
| High Pressure Flow (L/min) | 2.0 |
| Oil Capacity (Lt) | 35 |
| Weight (kg) | 62.4 |
| Volume (m³) | 0.133 |
| Packing Size L x W x H | 500 x 380 x 700mm |
| Type of Oil For This Pump | #15 Vicosity Hydraulic Oil |
Shipping & Delivery
Related products

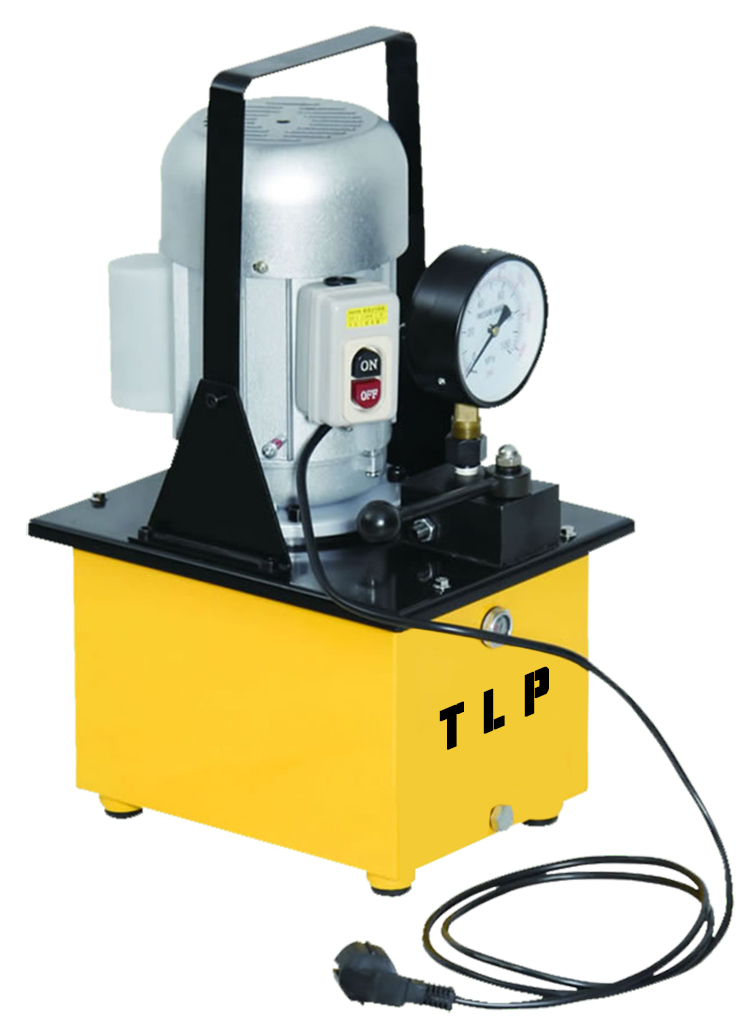

HYDRAULIC POWER PACK: 1HP 1PH 700 BAR 1 WAY
SKU:
HP-300480
* This is a standard onw way pump and is suitable for most applications.
* Lightweight and comes with carring handle.
* Two speed operation to reduce cycle time for improved productivity.
* 3 position valves: advance, hold & retract.
* All pumps are equipped with pressure gauges to minimise the risk of overload,.
* Maunual valve and motor control internal pressure and relief valve prevents overloading
* Working pressure is 700 bar
HYDRAULIC POWER PACK: 0.75KW 1PH 700 BAR 2 WAY
SKU:
HP-300484
* This HHB-630B is a two way pump and is suitable for most applications.
* Lightweight and comes with carring handle.
* Two speed operation to reduce cycle time for improved productivity.
* 3 position valves: advance, hold & retract.
* All pumps are equipped with pressure gauges to minimise the risk of overload,.
* Maunual valve and motor control internal pressure and relief valve prevents overloading
* Working pressure is 700 bar
HYDRAULIC POWER PACK: 1HP 1PH 600 BAR 1 WAY
SKU:
HP-300486
* This is a standard one way pump and is suitable for most applications.
* Lightweight and portable comes with carring handle.
* Two speed operation to reduce cycle time for improved productivity.
* 3 position valves: advance, hold & retract.
* All pumps are equipped with pressure gauges to minimise the risk of overload,.
* Maunual valve and motor control internal pressure and relief valve prevents overloading
* Capacity is 600 bar
HYDRAULIC POWER PACK: 1HP 1PH 700 BAR 1 WAY F/SWITCH
SKU:
HP-300488
* This is a one way pump and is suitable for most applications.
* Lightweight and comes with carring handle
* Two speed operation to reduce cycle time for improved productivity.
* 3 position valves: advance, hold & retract.
* All pumps are equipped with pressure gauges to minimise the risk of overload,.
* Maunual valve and motor control internal pressure and relief valve prevents overloading
* Working pressure is 700 bar
* Fitted with foot switch for hands free operation
HYDRAULIC POWER PACK: 3KW 3PH 700 BAR 2 WAY F/SWITCH
SKU:
HP-300490
* This is a 2 way pump and is suitable for most applications.
* Lightweight and comes with carring handles
* Two speed operation to reduce cycle time for improved productivity.
* 3 position valves: advance, hold & retract.
* All pumps are equipped with pressure gauges to minimise the risk of overload,.
* Maunual valve and motor control internal pressure and relief valve prevents overloading
* Large 35 litre oil resovoir, means adequate capacity for multi-cylinder applications
Long, trouble free life in most demanding work inviroments
* Fitted with foot switch for hands free operation
HYDRAULIC POWER PACK: 5.5HP PETROL 700 BAR 2 WAY
SKU:
HP-300500
* This is a two way pump and is suitable for most applications.
* Lightweight and comes with carring handle
* Mauual control valve
* Can use with either single or double acting tools
* All pumps are equipped with pressure gauges to minimise the risk of overload,.
* Maunual valve and motor control internal pressure and relief valve prevents overloading
* Comes with 15 litre oil reservior
* Protective roll cage for use in tough inviroments
* Fitted with 6.5hp petrol motor with recoil start
* Working pressure is 700 bar
