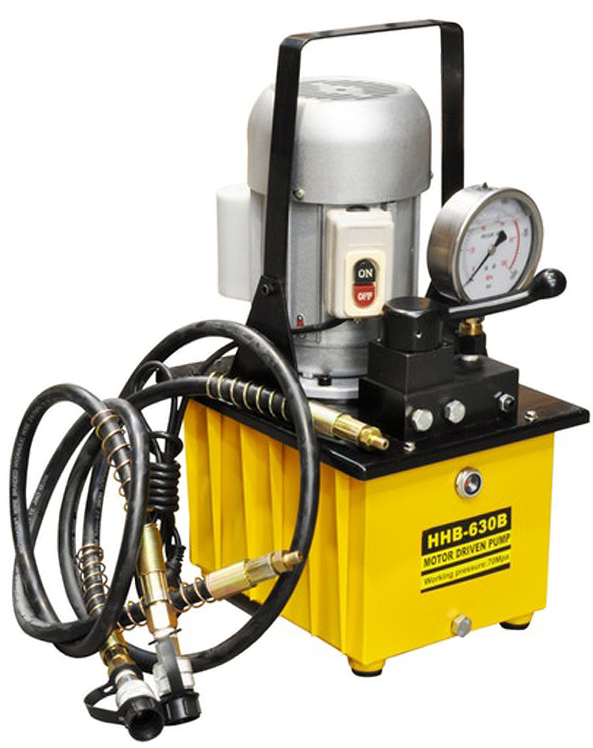

HYDRAULIC POWER PACK: 0.75KW 1PH 700 BAR 2 WAY
$1,225.00
* This HHB-630B is a two way pump and is suitable for most applications.
* Lightweight and comes with carring handle.
* Two speed operation to reduce cycle time for improved productivity.
* 3 position valves: advance, hold & retract.
* All pumps are equipped with pressure gauges to minimise the risk of overload,.
* Maunual valve and motor control internal pressure and relief valve prevents overloading
* Working pressure is 700 bar
| Weight | 26.6 kg |
|---|---|
| Dimensions | 0.37 × 0.32 × 0.54 cm |
In stock
Description
| Description | Hydraulic Power Pack |
|---|---|
| Model | HHB-630B |
| Description | Hydraulic Power Pack |
| Pump | Two Way |
| Motor Power (kW) | 0.75 |
| Low Pressure (Bar) | 20 |
| High Pressure (Bar) | 700 |
| Low Pressure Flow (L/min) | 5 |
| High Pressure Flow (L/min) | 0.7 |
| Oil Capacity (Lt) | 8 |
| Weight (kg) | 26.6 |
| Volume (m³) | 0.0639 |
| Packing Size L x W x H | 370 x 320 x 540mm |
| Type of Oil For This Pump | #15 Vicosity Hydraulic Oil |
Shipping & Delivery
Related products

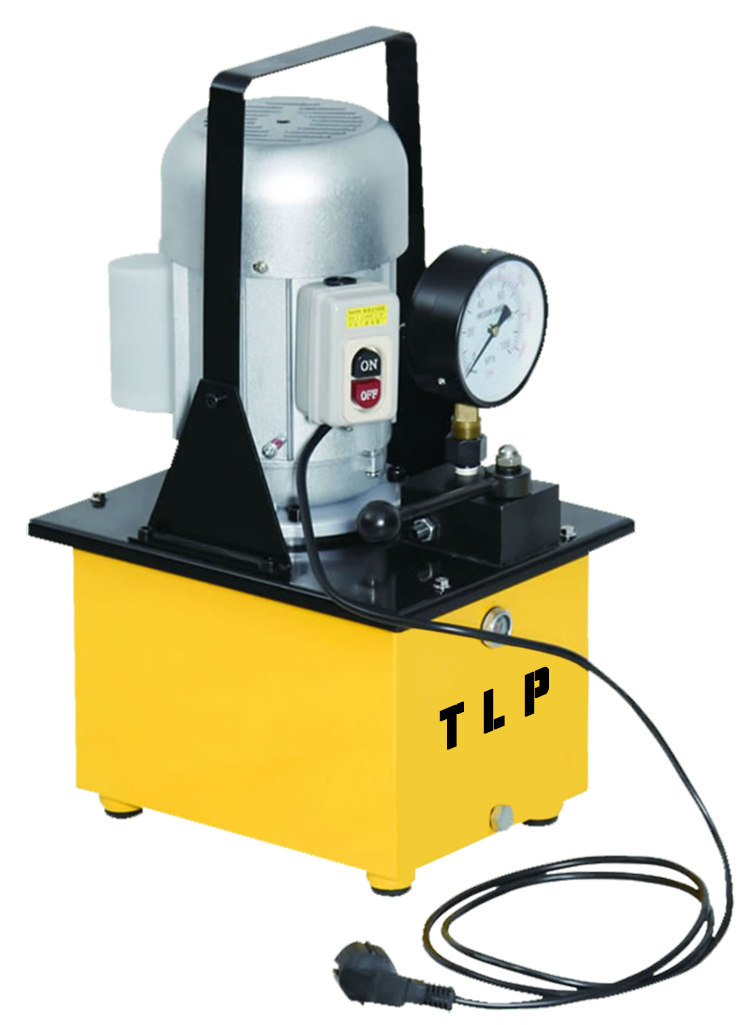

HYDRAULIC POWER PACK: 1HP 1PH 700 BAR 1 WAY
