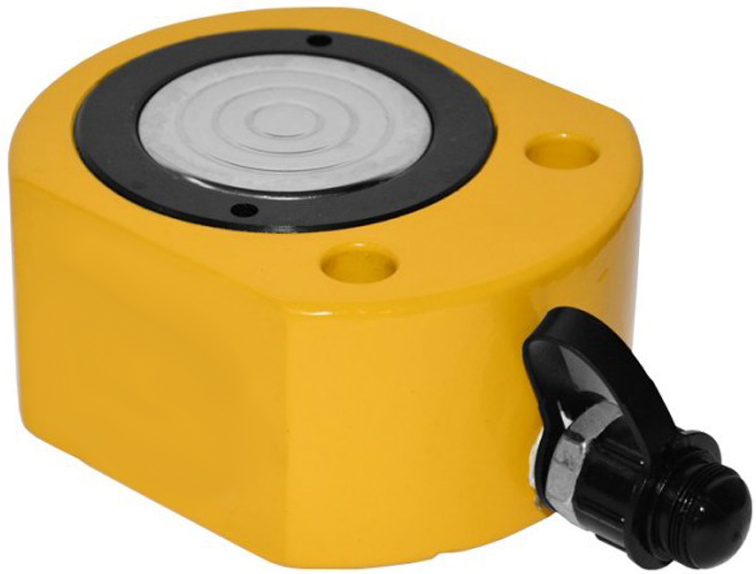

| DESCRIPTION | Super Thin Hyd Cylinder |
|---|---|
| CAPACITY | 50 Ton |
| MIN HEIGHT | 74mm |
| MAX HEIGHT | 88mm |
| STROKE | 16mm |
| BASE SIZE | 148 x 120mm |
| CONNECTOR | 3/8″-19 |
| WEIGHT NETT/GROSS | 7.0/7.8kg |
| VOLUME | 0.0024cm |
| PACKING SIZE L X W X H | 120 x 220 x 90mm |
| CYLINDER DIA | ID 100mm |
| PISTON DIA | 70mm |
Description
SKU : HJ-280706
Price per Unit
$275.00 (Exc GST)
$316.25 (Inc GST)
FEATURES:
* This hydraulic Super-Thin hydraulic cylinder is a lightweight low profile design for use in confined spaces
* Baked enamal finish to increase corrosion resistance
* Plunger wiper reduces contamination , extending cylinder life
* Matching pumps: CP-180, CP-630, CP-700, DYB-63A
