| CAPACITY | 30 Ton |
|---|---|

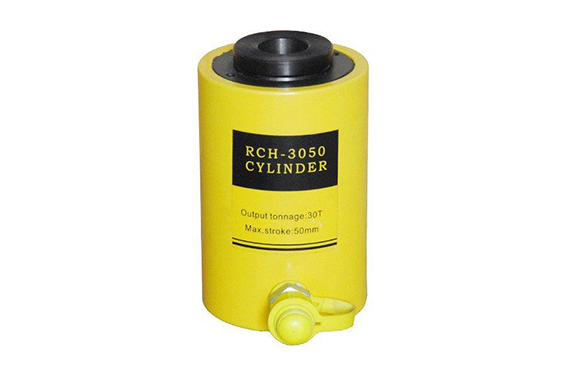

| DESCRIPTION | Hollow Center Hyd Cylinder |
| MIN HEIGHT | 180mm |
| MAX HEIGHT | 230mm |
| STROKE | 50.0mm |
| CENTRE HOLE | |
| CYLINDER DIAMETER | 114mm |
| CONNECTOR | 3/8″-19 |
| WEIGHT NETT/GROSS | 9.0kg |
| VOLUME | 0.0056cm |
| PACKING SIZE L X W X H | 200 x 200 x 140mm |
Description
SKU : HJ-280718
Price per Unit
$445.00 (Exc GST)
$511.75 (Inc GST)
FEATURES:
* This hydraulic Hollow Center hydraulic cylinder allows allows for both pull and push forces
* Fitted with spring return
* Baked enamal finish to increase corrosion resistance
* Plunger wiper reduces contamination , extending cylinder life
* Collar thread allows easy fixture
* Matching pumps: CP-180, CP-630, CP-700, DYB-63A
| Weight | 9 kg |
|---|---|
| Dimensions | 0.2 × 0.2 × 0.14 cm |
