| RIPTION | Hydraulic Toe Jack |
|---|---|
| CAPACITY TOP LIFTING | 30 Ton |
| MAX LOAD ON TOE | 15 Ton |
| MIN HEIGHT | 32.0mm |
| LIFTING STROKE | 160mm |
| MAX HEIGHT | 350mm |
| CLOSED HEIGHT | 305mm |
| BASE SIZE | |
| WEIGHT NETT/GROSS | 46.5/ 46.7kg |
| VOLUME | 0.0328cm |
| PACKING SIZE L X W X H | 410 x 320 x 250mm |
Description
SKU : HJ-280608
Price per Unit
$640.00 (Exc GST)
$736.00 (Inc GST)
FEATURES:

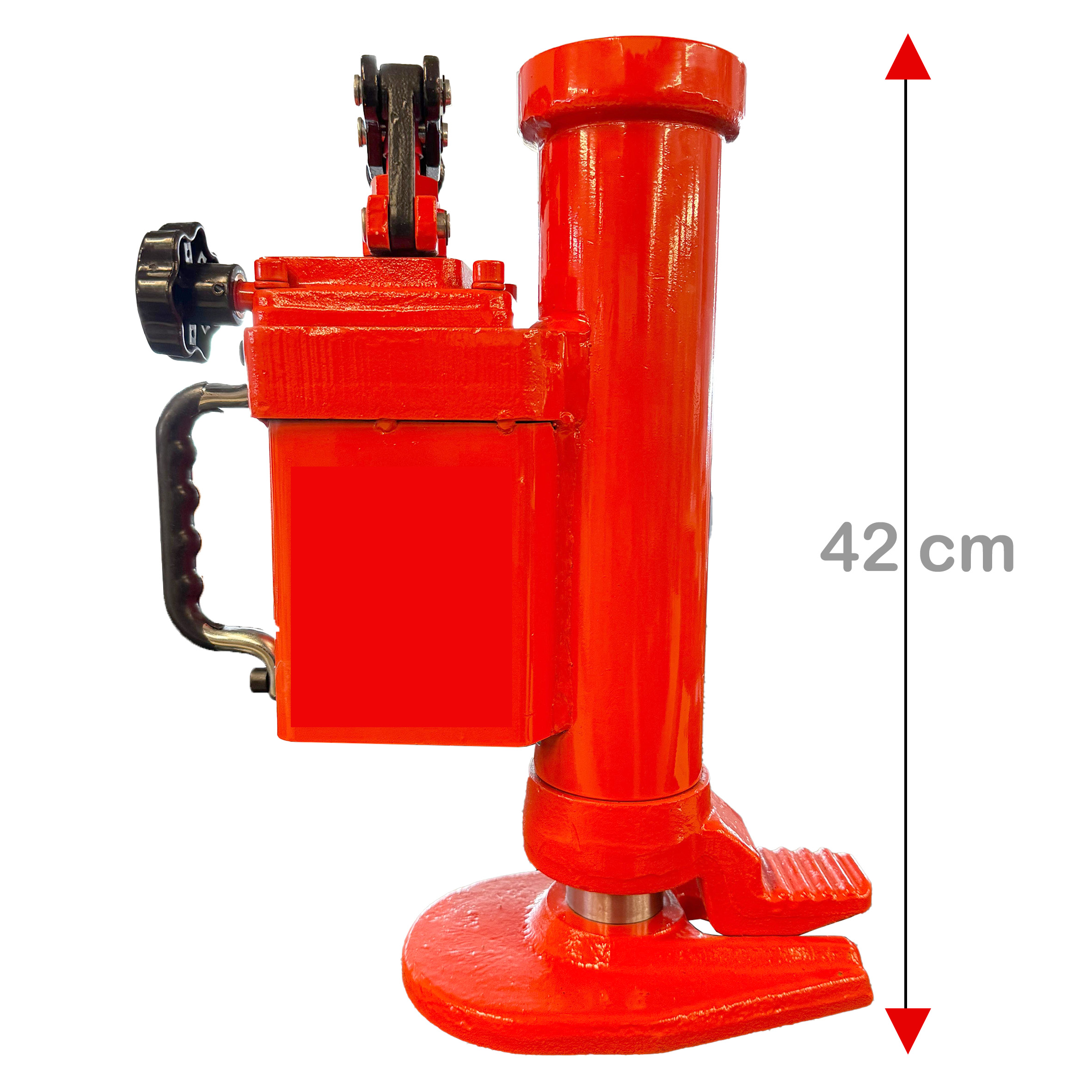

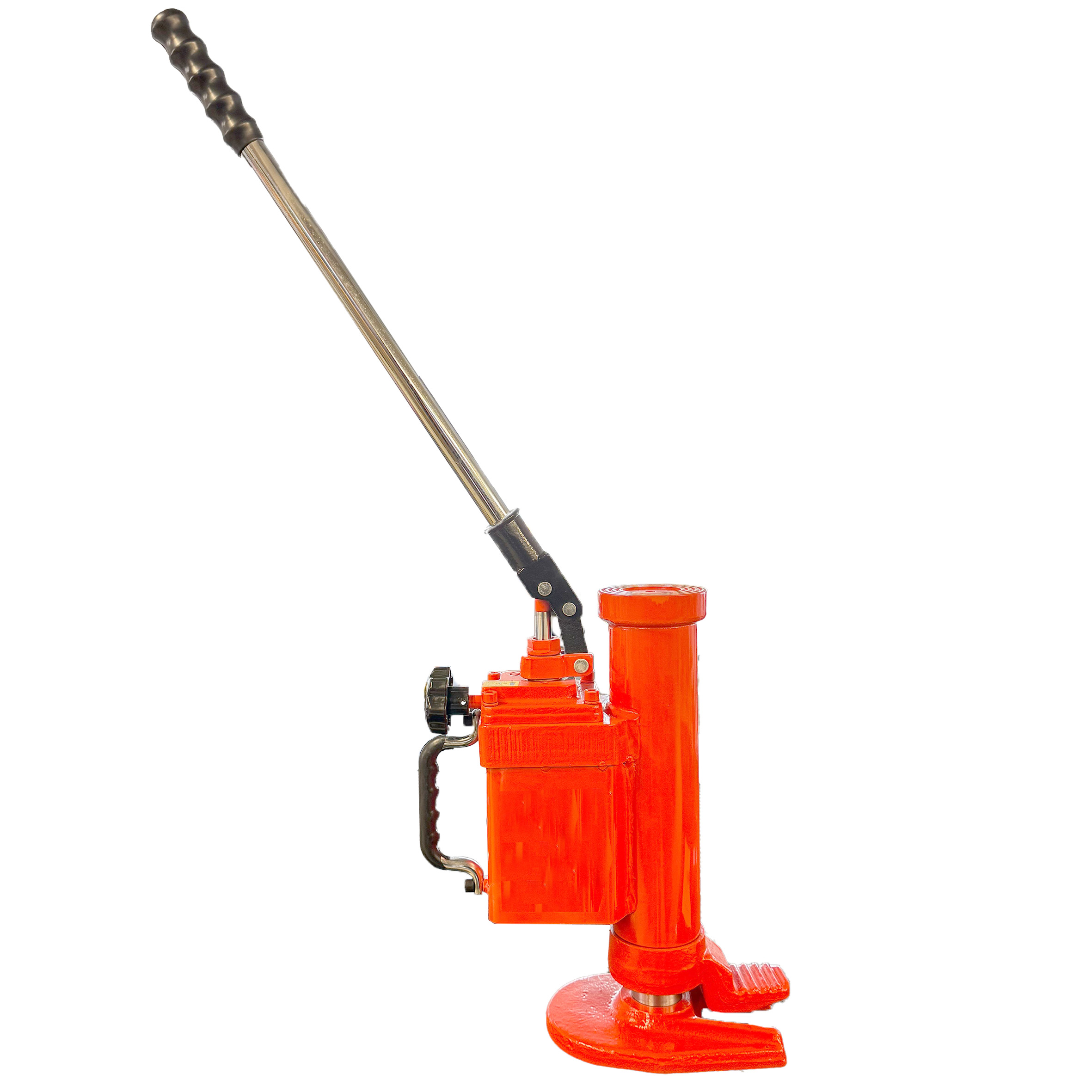

* This hydraulic toe jack is a special design for lifting objects with very small ground clearance
* Ideal for moving machinery etc
* This is 30 ton capacity on the verticle lift and 15 Ton on the toe
* All of these toe jacks have been tested with the toe weight
* Overloading the toe will void the warrantee
| Weight | 46.7 kg |
|---|---|
| Dimensions | 0.41 × 0.32 × 0.25 cm |
