HOLD DOWN CLAMP: 150 X 300MM 180 DEG
$85.00
* TJJ series 45 °pipe fixture can precisely clamp the welding parts with inclined
angle and can be changed up and down *
* The adjustable range of horizontal bar is 55-145 mm *
* A regulation ring is added to the vertical tube, which can help the adjustment better.

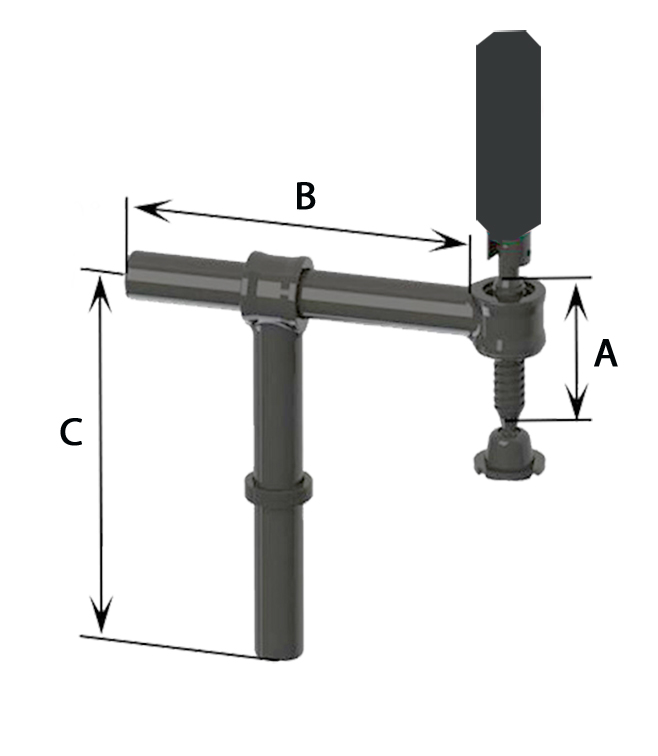

number a b c maximum load stock *
| Weight | 2.23 kg |
|---|---|
| Dimensions | 0.4 × 0.12 × 0.12 cm |
In stock
