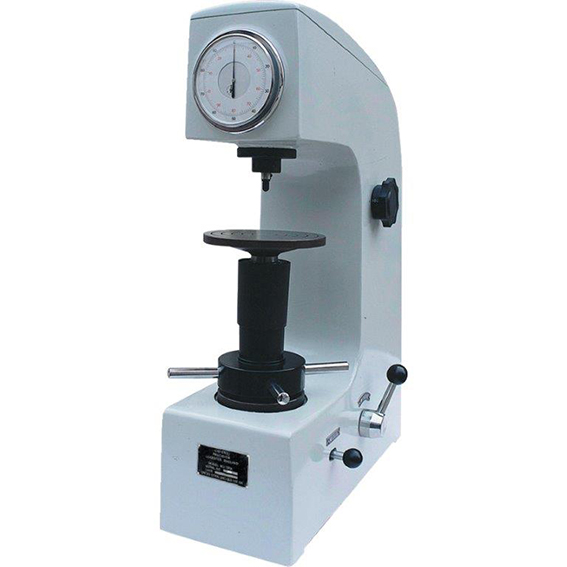

HARDNESS TESTER: EHT-3B ROCKWELL DAIL DASQUA

$3,390.00

* The Rockwell Hardness Tester is a simple but ruggedly constructed machine available for quick and easy testing of all ranges of material hardness
* The minute surface impression can be used to test finished goods
* The harness number is read directly on the dial
* The Rockwell Hardness number is derived from the net increase in depth of impression as the load on a penetrator is increased from a fixed minimum load to a higher load and then returned to the minimum load

Weight 68 kg
Dimensions 0.61 × 0.47 × 0.9 cm

In stock

SKU: HRT100190 Category:
Description
DESCRIPTION Rockwell Hardness Tester
BRAND Dasqua 1804-3607
MAX LOAD 150kg
LOAD RANGE 60, 100, 150kg
INITIAL RANGE LOAD 10.0kg (98.07N)
MAX TEST HEIGHT 108mm
DEPTH OF THROAT 115mm
MAX DEPTH OF SPINDLE BELOW BASE 50.0mm
BASE SIZE 180 X 465mm
MACHINE HEIGHT 630mm
WEIGHT NETT/GROSS 65.0/68.0kg
VOLUME 0.258
PACKING SIZE L x W x H 610 x 470 x 900mm
