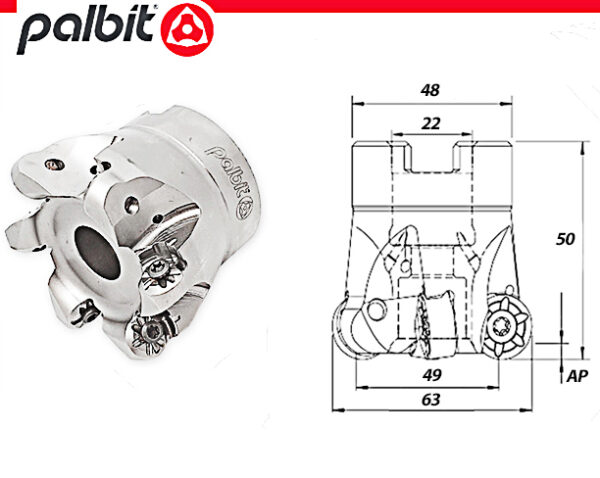

| Brand | Palbit |
|---|---|
| Model | Toromill X2 35190 |
| Diameter (mm) | 63 |
| Shank | 22mm arbor mount |
| Inserts (no.) | 6 |
| Inserts (type) | RNHX 1204 |
| Max AP (mm) | 3 |
| Weight (kg) | 0.6 |
| Volume (m³) | 0.0004 |
Description
SKU : FC-9555549
Price per Unit
$600.00 (Exc GST)
$690.00 (Inc GST)
FEATURES:
* PALBIT TORO milling tools are used when special requirements are placed on the metal removal rate, with increased width of cut or higher feed rate.
* Performance that conventional tools cannot provide.
* Toro tools are particularly suitable for roughing and prefinishing.
Milling Operations
Profiling, Facing, Slotting, Helical Interpolation, Ramp Down
| Weight | 0.599 kg |
|---|---|
| Dimensions | 0.075 × 0.08 × 0.06 cm |
