| Brand | Palbit |
|---|---|

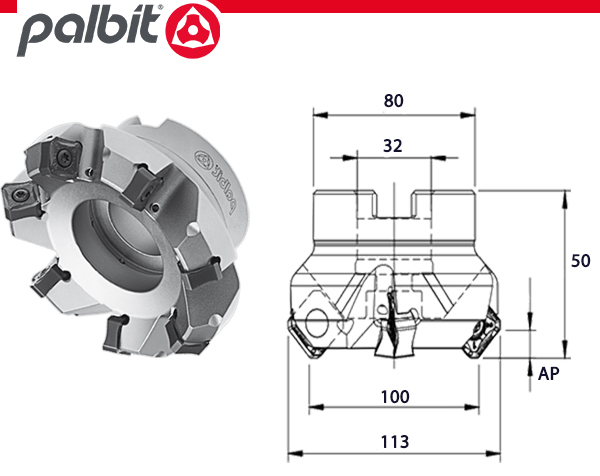

| Model | Plus 90945 |
| Diameter (mm) | 100 |
| Shank | 32mm arbor mount |
| Inserts (no.) | 8 |
| Inserts (type) | SN..1206 |
| Rake Angle | 45° |
| Max AP (mm) | 6 |
| Weight (kg) | 1.6 |
| Volume (m³) | 0.0015 |
Description
SKU : FC-9555560
Price per Unit
$639.90 (Exc GST)
$735.89 (Inc GST)
FEATURES:
* Chip-thinning from the 45-degree lead angle allows increased feed rates by 50%.
* Square inserts maintain chip thinning to a cutting depth of 0.250″.
* The chamfers on the inserts provide a wiper effect to minimize surface roughness and provide good finish.
Milling Operations: Chamfering, Facing
