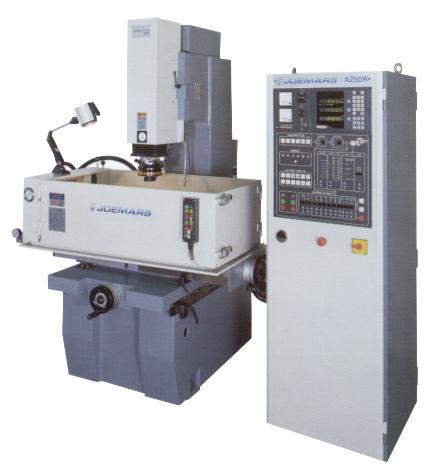

EDM: JM430+AZ50R+D430
$31,135.00
* The Joemars JM430 + AZ50R + D430 pack is specially designed for drilling hard materials such as hardened steels, alloys and tungstan carbide in ranges of 0.2mm-3.0mm
* Featurs Fuzzy logic control, 75amps, DRO
| Weight | 1400 kg |
|---|---|
| Dimensions | 1.52 × 1.45 × 2.25 cm |
Description
| CAPACITY OF TANK | 340 Ltrs |
|---|---|
| WORK TABLE | 650 X 400mm |
| TRAVEL X | 400mm |
| TRAVEL Y | 300mm |
| SPINDLE HEADSTOCK TRAVEL | 200mm |
| MAX ELECTRODE WEIGHT | 75 Kgs |
| MAX TABLE WEIGHT | 900kgs |
| MAX WORKTABLE CLEARANCE | |
| MAX OUTPUT | 75amps |
| VOLTAGE | 380v 3 Phase |
| MAX PROCESSING SPEED | |
| WEIGHT NETT/GROSS | 1400 / 1400kg |
| VOLUME | 4.959cm |
| PACKING SIZE L X W X H | 1520 X 1450 X 2250mm |
Shipping & Delivery
