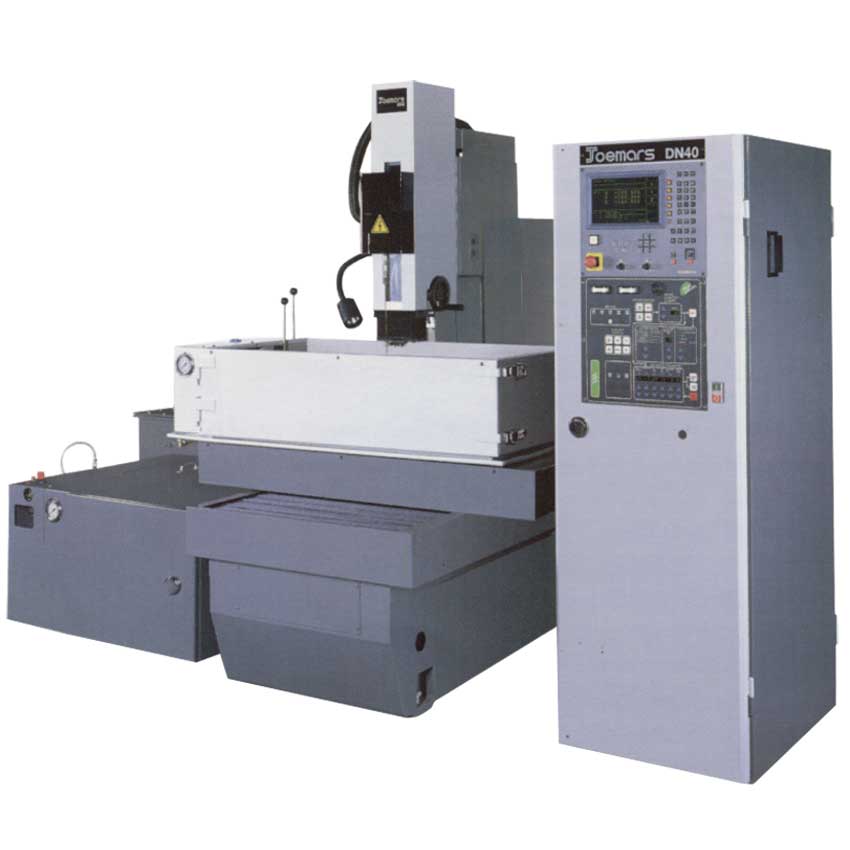

EDM: CNC DNC42+DN40 SUPERDRILL
$0.00
* The Joemars DNC42 is specially designed for drilling hard materials such as hardened steel aaloys & tungston carbide in ranges of 0.2mm-3.0 mm
* This CNC EDM drill is a production drilling machine controlled by a Heidenhain controller
*The newly developed sparking cercuits are special to the DNC42 EDM super drills to enhance machine speed excellent flushing lower wear & higher accuracy*
| Weight | 1200 kg |
|---|---|
| Dimensions | 2.5 × 1 × 1.3 cm |
Description
| CAPACITY OF TANK | 400 Ltrs. |
|---|---|
| WORK TABLE | 650 X 400mm |
| TRAVEL X | 420 mm |
| TRAVEL Y | 320mm |
| SPINDLE HEADSTOCK TRAVEL | 595mm |
| MAX ELECTRODE WEIGHT | 20kg |
| MAX TABLE WEIGHT | 900kg |
| MAX WORKTABLE CLEARANCE | |
| MAX OUTPUT | 38amps |
| VOLTAGE | 380v 3 Phase |
| MAX PROCESSING SPEED | |
| WEIGHT NETT/GROSS | 1200/1200kg |
| VOLUME | 3.500cm |
| PACKING SIZE |
Shipping & Delivery
Related products
EDM: TR100 TAP REMOVER
SKU:
EDM100030
* Light small portable compct design
* High speed & high efficiency and low cost
* Simple operation easy remove broken taps
* Dielectric - using ordinary tap water as a machine dielectric liquid
* Using any brass bar as electrode
* Removal of taps will not damage the threads
* Auto feed 30deg both left and right depth setting selectable arcing timer Auto retract Alarm messages Depth arrival over-tempreture *
EDM: JM325D SUPER DRILL
SKU:
EDM100150
* The Joemars JM325D is specially designed for drilling hard materials such as hardened steel alloys and tungstan carbide in ranges of 0.2mm - 3.0mm
* The newly developed sparking cercuits are special to the JM325D & JM528D EDM Super Drills to enhance machining speed excellent flushing lower wear & higher accuracy *
EDM: JM325DZ SUPER DRILL
SKU:
EDM100170
* The Joemars JM325DZ is fitted with the Fuzzy Logic control system
* Easy to learn and operate - new operator can learn operation and be confident in only a few hours
* Includes 3 axis DRo system: X Y axis use linear scale Z axis uses encoder
* Five kinds of alarm indicators: will light up apon depth arrival Arcing Low Dielectric level For safety and on short electrode
* Anti hitting system for electrode
* Using 'MOSFET' sparking circuits suitable for tungsten carbide hardened steel etc
EDM: JM528DZ SUPER DRILL
SKU:
EDM100180
* The Joemars JM528DZ is fitted with the Fuzzy Logic control system
* Easy to learn and operate - new operator can learn the operation and be confident in only a few hours
* Includes 3 axis DRO system: X Y axis use linier scales Z axis uses encoder
* Five kinds of alarm indicators: will light up apon depth arrival arcing low dielectrics Anti hitting system for electrodes
* Using 'MOSFET' sparking circuits suitable for tungsten carbide hardened steel etc.
EDM: CNC WT455S WIRE CUT
SKU:
EDM100230
EDM: CNC WT655 WIRE CUT
SKU:
EDM100240
EDM: CNC JMNC2010+HD50
SKU:
EDM100280
JM430+AZ50R+D430: AUTOMATIC FIRE EXTINGUISHER
SKU:
EDM100360
