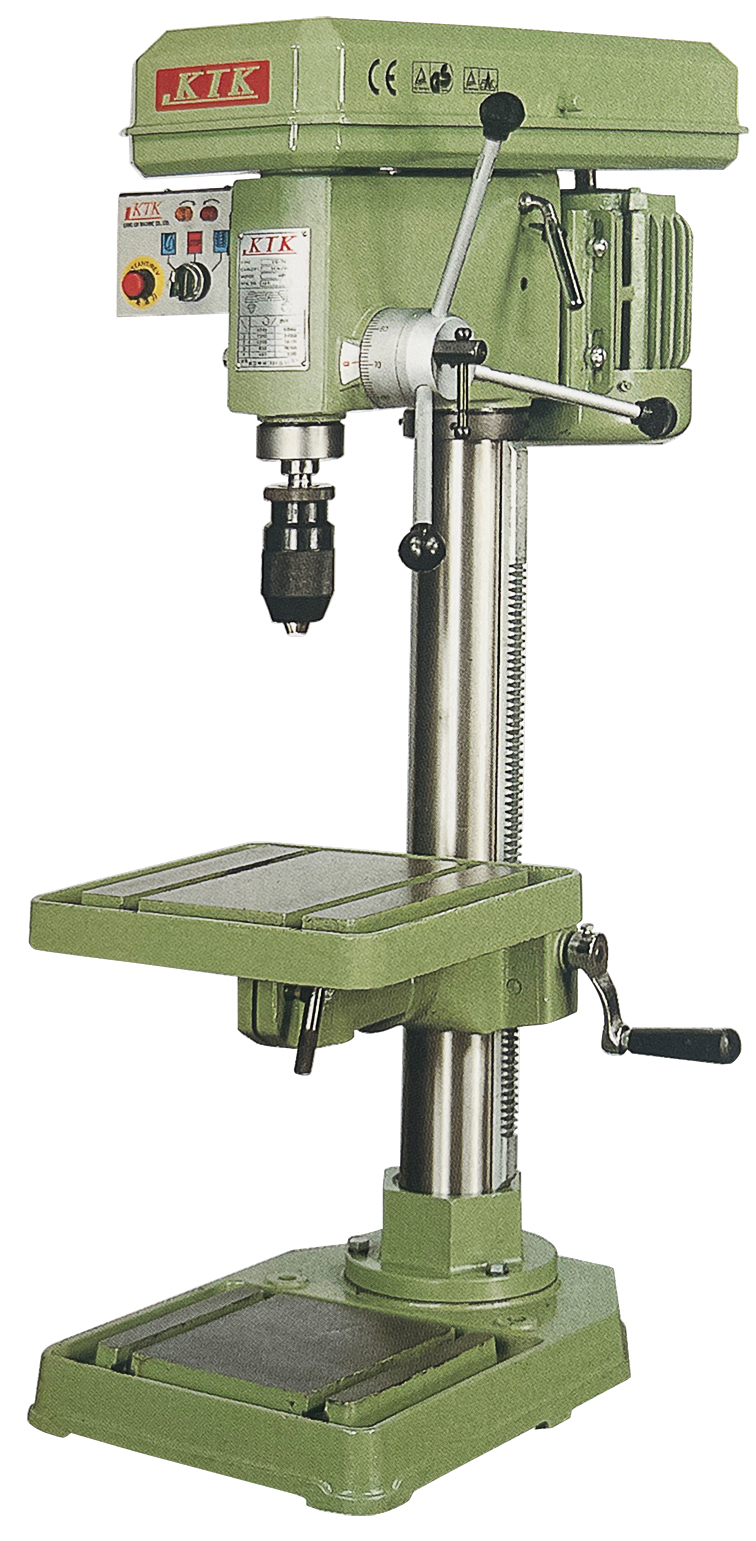

DRILL PRESS: KTK TB-340 1PH 1HP AUTO FEED/TAPPING
Excl. GST: $4,450.00
Incl. GST: $5,117.50
* The KTK range of Industrial machines are designed for the industrial user
* This is a bench model and features auto feed on the quill.
* Industrial quality machines which are rugged and reliable and are designed for workshop conditions.
* Comes with MT3 quill (We can supply MT3 x 19mm arbor capable of holding annular cutters up to 50mm).
* Also capable of running multi-spindle heads for production enviroment.
* These machines are manufactured in Taiwan and are top quality industrial machines and will offer many years of trouble free service.
* This model has the taping facility
| Weight | 220 kg |
|---|---|
| Dimensions | 0.86 × 0.5 × 1.95 cm |
In stock
Description
| Capacity (mm) | 16 |
|---|---|
| Table Size (mm) | 300 x 300 |
| Speeds (no.) | 9 |
| Speed Range (rpm) | 190 – 2,600 |
| Spindle Taper | MT2 |
| Quill Diameter (mm) | |
| Quill Stroke (mm) | 80 |
| Swing (mm) | |
| Column Diameter (mm) | 80 |
| Table Slot (mm) | |
| Motor (kW) | 0.75 |
| Voltage (V) | 230 |
| Tapping Facility | Yes |
| Weight Nett / Gross (kg) | 220 |
| Volume (m³) | 0.8385 |
| Packing Size L x W x H (mm) |
