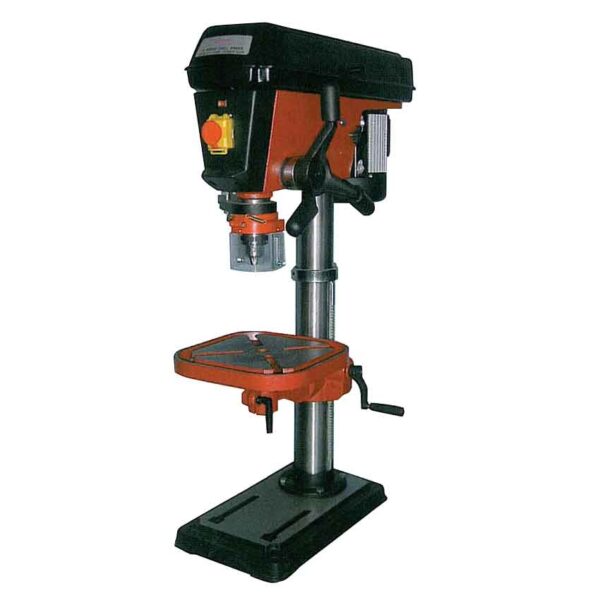

DRILL PRESS: DP-19S BENCH TYPE 12 SPEED
$850.00
* Powered by quiet, fan cooled motors.
* Robust construction for accurate drilling.
* Change speeds by adjusting the drive belts.
* Rack & pinion system for adjusting table height.
* Worklight between the column & the spindle.
* Round table can tilt ±45° and rotate 360°.
* Spring loaded chuck guard with flip-up screen.
* Aluminium motor housing.
* Magnetic safety switch.
* Quick action belt tensioning lever.
* Limit switch inside belt housing.
| Weight | 86 kg |
|---|---|
| Dimensions | 0.6 × 0.5 × 0.4 cm |
In stock
Description
| Capacity (mm) | 20 |
|---|---|
| Table Size (mm) | 290 x 290 |
| Speeds (no.) | 12 |
| Speed range (rpm) | 120 – 2580 |
| Spindle Taper | MT2 |
| Quill Diameter (mm) | 50 |
| Quill Stroke (mm) | 80 |
| Swing (mm) | 350 |
| Column Diameter (mm) | 80 |
| Motor (kW) | 0.65 |
| Voltage (V) | 230 |
| Weight Nett / Gross (kg) | 82 / 86 |
| Volume (m3) | 0.12 |
| Packing Size L x W x H (mm) | 600 x 500 x 400 |
| Belts (Z-section) | 1 x 610mm / 1 x 625mm |
Shipping & Delivery
Related products
DRILL PRESS:
SKU:
DMC348430
* Powered by quiet, fan cooled motors.
* Robust construction for accurate drilling.
* Change speeds by adjusting the drive belts.
* Rack & pinion system for adjusting table height.
* Worklight between the column & the spindle.
* Round table can tilt ±45° and rotate 360°.
* Spring loaded chuck guard with flip-up screen.
* Aluminium motor housing.
* Magnetic safety switch.
* Quick action belt tensioning lever.
* Limit switch inside belt housing.
DRILL PRESS: DP-25 FLOOR TYPE 1HP
SKU:
DMC348437
* Powered by quiet, fan cooled motors.
* Robust construction for accurate drilling.
* Change speeds by adjusting the drive belts.
* Rack & pinion system for adjusting table height.
* Worklight between the column & the spindle.
* Round table can tilt ±45° and rotate 360°.
* Spring loaded chuck guard with flip-up screen.
* Aluminium motor housing.
* Magnetic safety switch.
* Quick action belt tensioning lever.
* Limit switch inside belt housing.
DRILL PRESS: DP-32 MT4 FLOOR TYPE 2HP
SKU:
DMC348439
* Industrial model.
* Powered by quiet, fan cooled motors.
* Robust construction for accurate drilling.
* Change speeds by adjusting the drive belts.
* Rack & pinion system for adjusting table height.
* Worklight between the column & the spindle.
* Round table can tilt ±45° and rotate 360°.
* Spring loaded chuck guard with flip-up screen.
* Aluminium motor housing.
* Magnetic safety switch.
* Quick action belt tensioning lever.
* Cast one piece handle.
DRILL PRESS: KTK TB-120 1PH AUTO FEED
SKU:
DMC348440
* The KTK range of Industrial machines are designed for the industrial user
* This is a bench model and features auto feed on the quill.
* Industrial quality machines which are rugged and reliable and are designed for allworkshop conditions.
* Comes with MT2 quill taper (We can supply MT2 x 19mm arbor capable of holding annular cutters up to 50mm).
* Also capable of running multi-spindle heads for production enviroment.
* These machines are manufactured in Taiwan and are top quality industrial machines and will offer many years of trouble free service.
DRILL PRESS: KTK SB-250 1PH 2HP AUTO FEED
SKU:
DMC348480
* The KTK range of Industrial machines are designed for the industrial user
* This is a bench model and features auto feed on the quill.
* Industrial quality machines which are rugged and reliable and are designed for workshop conditions.
* Comes with MT3 quill (We can supply MT3 x 19mm arbor capable of holding annular cutters up to 50mm).
* Also capable of running multi-spindle heads for production enviroment.
* These machines are manufactured in Taiwan and are top quality industrial machines and will offer many years of trouble free service.
CHUCK GUARD: DRILL PRESS SMALL 40MM
SKU:
SPD220690
CHUCK GUARD: DRILL PRESS MEDIUM 55MM
SKU:
SPD220692
CHUCK GUARD: DRILL PRESS LARGE 75MM
SKU:
SPD220694
