MODEL | CS-315SA |
---|---|
MOTOR | 1.5kw 3ph |
MAX CUT 90DEG | 130x70mm Rectangle 70mm Round |
MAX CUT 45DEG | 90x70mm Rectangle 70mm Round |
BLADE SIZE | 315mm |
BORE | 40.0mm |
SPEEDS | 19 & 38m/min |
WEIGHT | 235kg |
VOUME | |
PACKING DIMENSIONS |
Availability : Enquire Now
Price per Unit
ex-gst
$3,700.00Inc-gst
$4,255.00CUT OFF SAW: CS315SA 315MM 3PH Automatic
Description
SKU : COM105422
Price per Unit
$3,700.00 (Exc GST)
$4,255.00 (Inc GST)
FEATURES:
* Centrically Tensioning Vice
* Quadruple Guiding with individual adjusting jaws
* Clamping system with four levers
* Removal coolant tank with powerful pumpt
* Angular scale allows precise working. -45 t0 + 45 deg
Weight | 235 kg |
---|
Specifications
Description
Reviews (0)
Be the first to review “CUT OFF SAW: CS315SA 315MM 3PH Automatic” Cancel reply
Shipping & Delivery
Related products
CUT OFF SAW: CS235 235MM 1PH PORTABLE
SKU:
COM105390
$995.00
* The 235mm Super Cut portable cold saw is an ideal small machine for site work or small workshop
* Can cut 0-45 del left with maximum cutting capacity of 67.0mm
* Light weight (20kg ) with powerful 1500w DC motor
* Safety features include moror protectors - one controlling the amps, the other controlling the tempreture of the motor
* Start button is inside the operating handle
* Comes wilth coolant system
CUT OFF SAW: CS275 275MM 1PH
SKU:
COM105400
$2,300.00
CUT OFF SAW: CS275 275MM 3PH
SKU:
COM105410
$2,650.00
CUT OFF SAW: CS315 315MM 1PHASE TAIWAN MAKE
SKU:
COM105415
$3,400.00
* Sturdy construction and heavy cast stands.
* Push button operation.
* Long handle provides plenty of torque.
* Swivel head with quick action lever.
* Uniquie central tensioning vice: 4 way guide system with individual clamping jaws.
* Removable coolant tank with powerful pump.
* Angular scale for the precise cutting of angles.
CUT OFF SAW: CS315 315MM 3PH
SKU:
COM105420
$3,750.00
* Sturdy construction and heavy cast stands.
* Two cutting speeds.
* Push button operation.
* Long handle provides plenty of torque.
* Swivel head with quick action lever.
* Uniquie central tensioning vice: 4 way guide system with individual clamping jaws.
* Removable coolant tank with powerful pump.
* Angular scale for the precise cutting of angles.

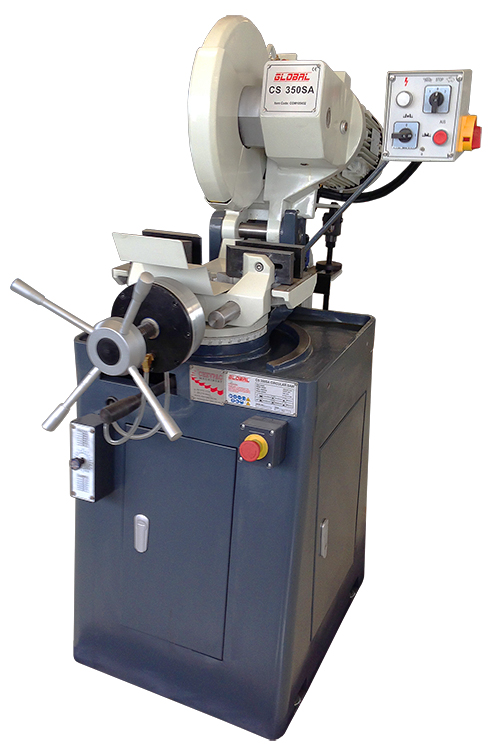

CUT OFF SAW: CS350SA 350MM AUTO DOWNFEED 3ph
