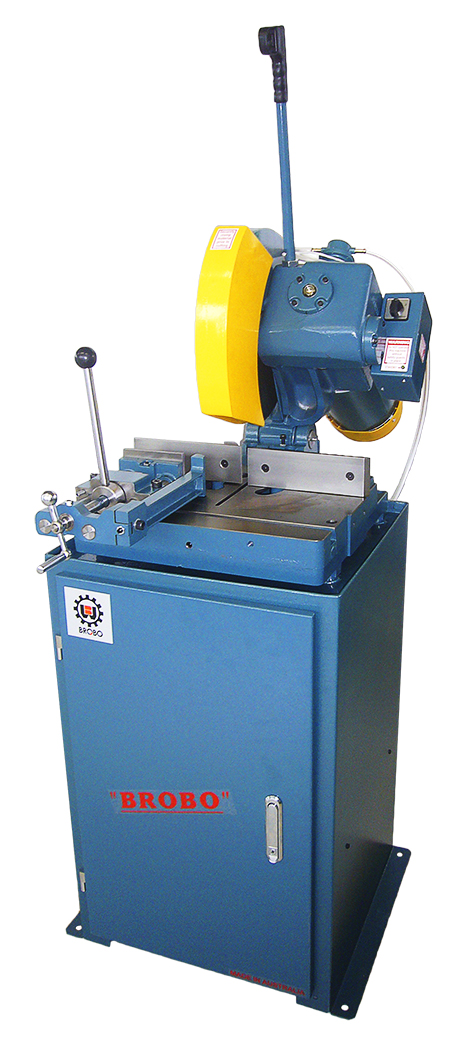

CUT OFF SAW: BROBO S315D (9330040) Low/Medium Speed

$10,172.00

* This machine is fitted with a high speed steel blade for general purpose cutting of steel tubes profiles and solids
* Machines are supplied with a Intergrated Stand for a free standing unit
* The main spindle rotates in a large bearing area for smooth operation driven by a bronze wormwheel
* The steel wormshaft is mounted in tapered roller bearings and coupled directly to the motor
* The entire assembly is enclosed in an oil bath.

Weight 201 kg
SKU: COM105782 Category:
Description
MODEL Brobo S315D
MOTOR 1.1/1.5Kw
MAX CUT 90DEG 95 / 85mm (Pipe / Square)
MAX CUT45DEG 95 / 80mm (Pipe / Square)
MAX CUT Rectangualar 100mm x 80mm @ 90Deg
BLADE SIZE 315 x 2.5
BORE 40.0mm
SPEED (Two Speed) Low/ Medium 21-42rpm
WEIGHT NETT/GROSS 201Kg
VOLUME 0.65cm
