| MODEL | BMDO XS |
|---|---|
| AUTOMTIC LOADER LENGTH | 6 Meters |
| MAX CUT90DEG | 100mm Solid Round |
| SHOTEST LENGTH | 60mm |
| BLADE SPEED | 40 – 280 m/min |
| BLADE SIZE | 360 x 2.6mm |
| FEEDING STROKE | 800 mm |
| MAIN MOTOR POWER | 15kw |
| HYDRAULIC MOTOR POWER | 2,2 KW |
| COOLING MOTOR | 0,2kw |
| SERVO FEEDING MOTOR | 2kw |
| DOWN FEED SERVO MOTOR | 2kw |
| CHIP CONVEYOR MOTOR | 0,25kw |
| BLADE DIMENSIONS | 360X2,6 mm |
| WEIGHT NETT/GROSS | 3,450 Kg |
| LOADER WEIGHT | 1,150 Kg |
| MACHINE SIZE | 2460 x 2360 x 2610 ( L x Wx H ) |
| LOADER SIZE | 6350 x 1850 x 1300 (L x W x H ) |
Description
SKU : COM105465
Price per Unit
$155,000.00 (Exc GST)
$178,250.00 (Inc GST)
FEATURES:

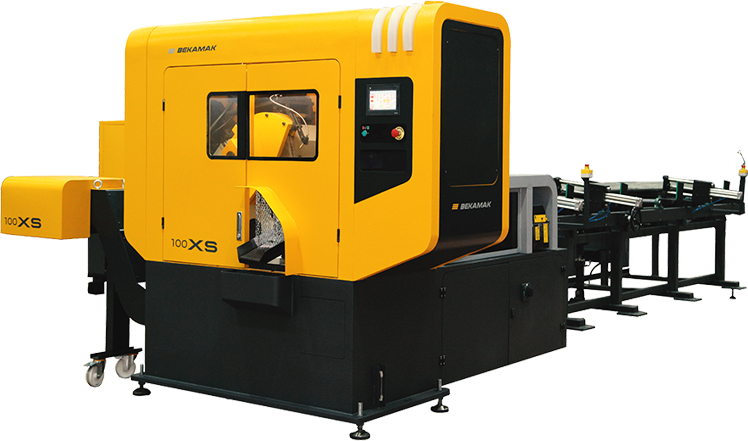

• Mass production in continuous operation is done by BMDO 100 XS when producing cut-off pieces of steel and non-ferrous metals with a material cross-section up to a diameter of 100 mm.
• BMDO 100 XS is designed to be used with TCT circular saw blade in order to cut solid bars in high speed and excellent precise.
• It is also suitable for HSS blades to cut tubes.
• With the Standard 800mm stroke servo feeding and 6 meters automatic loader, BMDO 100XS CNC is perfect for large-scale productiono cut tubes.
