CRANKSHAFT GRINDER: SWING 600 X 2000MM B/CENTERS
$0.00
* This CG-8260C crankshaft grinder is built very solid for accuracy and reliability
* Comes with single layer table with oblique angle of 10 degree, longitudional traverse can be opperated either by hand or by power *
| Weight | 7300 kg |
|---|---|
| Dimensions | 4.9 × 2.037 × 1.584 cm |
Description
| DESCRIPTION | Crankshaft Grinder |
|---|---|
| MODEL | CG-8260C |
| MAX SWING | 600mm |
| MAX LENGTH B/CENTERS | 2000mm |
| MAX WORKPIECE WEIGHT | 260kg |
| THROW OF CRANKSHAFT | 110mm |
| CENTER HEIGHT HEADSTOCK | 300mm |
| MAX WHEEL HEAD TRAVEL | 185mm |
| GRINDING WHEEL SPEED | 740/890rpm (Two Steps) |
| MOTOR | 9.82kw |
| VOLTAGE | 415v 3 Phase |
| WEIGHT NETT/GROSS | 7000/7300kg |
| VOLUME | 15.8104cm |
| PACKING | L4900 x W2037 x D1584mm |
Shipping & Delivery
Related products

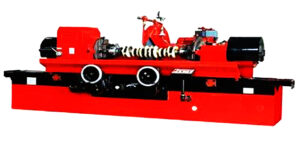

CRANKSHAFT GRINDER: SWING 600 X 1600MM B/CENTERS
