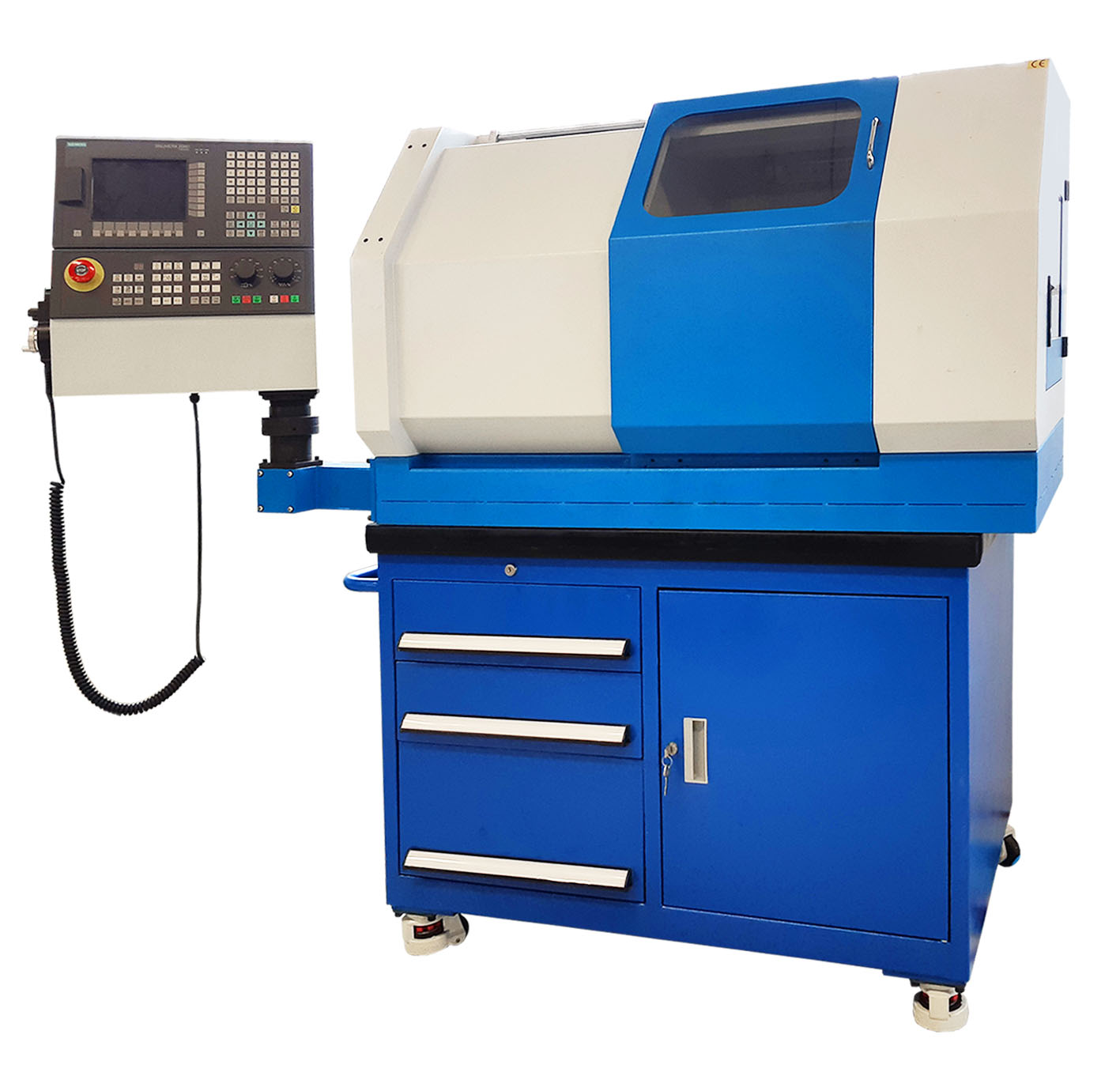

CNC LATHE: SLANT BED GLOBAL GL-2820 808D
$19,900.00
* Ideal for small production or training, with all the features of a large machine.
* Compact & manoeuvrable units.
* Slant bed on linear rails.
* Siemens 808D controller.
* Programming Siemens & ISO G code.
* One shot lubrication behind the saddle.
* Manual pulse generator handwheel.
* 8 station turret style toolholder, with 4 internal and 4 external toolholders.
* Full guarding with end opening door.
* Stand sold seperately
| Weight | 310 kg |
|---|---|
| Dimensions | 0.9 × 1.3 × 1.85 cm |
Description
| Swing Over Bed (mm) | 200 |
|---|---|
| Swing Over X-slide (mm) | 90 |
| Distance Between Centres (mm) | 280 |
| Speed Range (rpm) | 100 – 3,000 |
| Spindle Bore (mm) | 21 |
| Spindle Taper | MT3 |
| Z Travel (mm) | 190 |
| X Travel (mm) | 125 |
| Tailstock Taper | MT1 |
| Toolholders | 8 |
| Voltage (V) | 230 |
| Motor Power (kW) | 1.1 |
| Weight Nett / Gross (kg) | 310 / 360 |
| Volume (m³) | 0.675m³ |
| Packing Size | 1200 x 750 x 750 |
