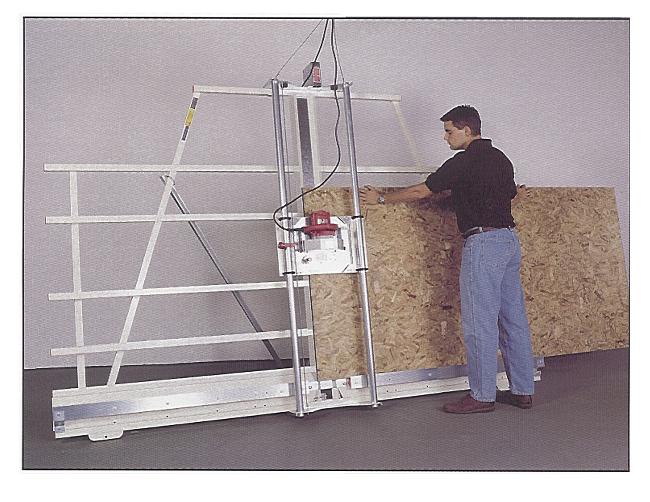

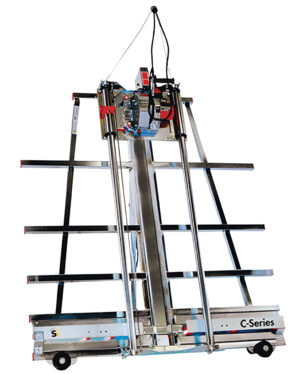

C-4 VERTICAL PANEL SAW 220V

$10,205.00

* 5′ welded steel frame
* Zinc plated 1.75″ steel guide tubes
* 4 Nylatron roller bearing system
* Adkustable vertical and horizontal rulers
* Qucik change from vertical to horizontal cutting
* Thin material pressure guide
* Injection – molded plastic material rollers
* Spring loaded counter balance system
* Integrated dust collection bonnet
* TUV certified to UL / CSA standards.

Vertical Saws provide the safest and fastest solution for processing panels. Save your back, and cut vertically or horizontally, with a vertical panel saw featuring a heavily guarded saw blade that reduces the chance of operator contact with the blade! Learn about the Advantages of Cutting with a Vertical Panel Saw.

All of our panel saws allow for making crosscuts or ripcuts by simply pulling up on the indexing pins and rotating the motor 90-degrees.

Engineered with your safety in mind, our vertical panel saws are built with several safety mechanisms reducing the likelihood of operator error. Ask our team to tell you more! Safety Speed is America’s leading Manufacturer of Vertical Panel Saws and company founder, Gene Olson invented the vertical panel saw in 1958.

Weight 140 kg
Dimensions 3.1 × 2.2 × 0.3 cm
SKU: WS-100140 Category:
Description
DESCRIPTION Wall Saw
MODEL SSC C- 4
MAX CROSS CUT 1270 mm
MAX RIP CUT 2450 mm
MAX CUT DEPTH 45mm
CUT ACCURACY 0.8 mm
SAW BLADE DIAMETER 210 mm
MOTOR 3.25 HP ( 220 V)
MOTOR SPEED (no load) 5800rpm
FRAME LENGTH 1,525mm
WEIGHT 123Kg
