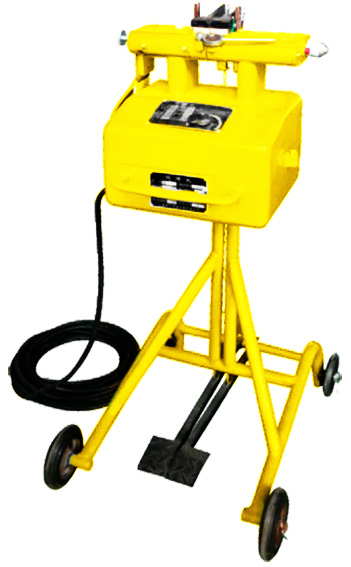

BUTT WELDER: 1KVA 1PH SINIC
$0.00
* This 1kva butt welder has a range 0.6 – 2.0mm round
* Comes comp;ete on convenient mobile stand
* Foot pedel to allow for hands free operation
| Weight | 13 kg |
|---|---|
| Dimensions | 0.265 × 0.265 × 0.31 cm |
Description
| DESCRIPTION | Butt Welder |
|---|---|
| MODEL | UN-1 |
| RATED VOLTAGE | 220v |
| RATED INPUT CAPACITY | 1 KVA |
| RATED PRIMARY CURRENT | 4.8 Amps |
| RATED DUTY CYCLE | 8% |
| NO LOAD VOLTAGE | 0.65–2.0v |
| MAX FORGING FORCE | 10N |
| MAX FEED STROKE | 3.0mm |
| MAX JAW DISTANCE | 7.0mm |
| MAX WELD DIAMETER | 0.6 – 2.0mm |
| WEIGHT NETT/GROSS | 12/13kg |
| VOLUME | 0.0218cm |
