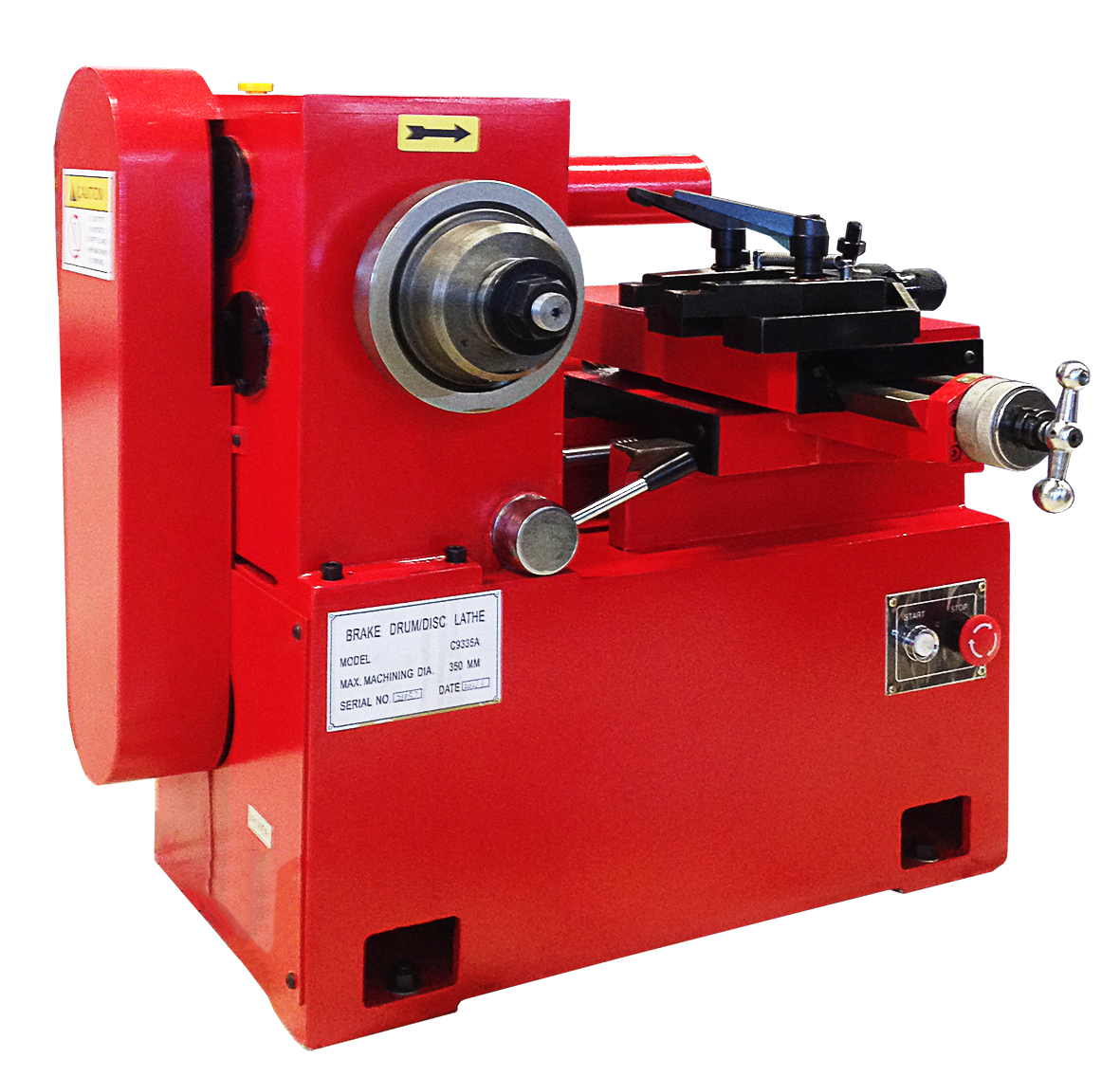

BRAKE DISC & DRUM LATHE: RANGE 200-450MM C9340
$4,700.00
* This Disc/Drum brake lathe can handle brake drums 180-350mm and discs to 450mm
* Rigid cast construction for durability and accuracy
* This is the new model with variable speed for accurate cutting
* Machine comes complete with two tool posts
* Cutting tool holder is fitted with standard carbide insert
* Powered by 0.75kw single phase motor
* Affordable and a profitable asset to any auto workshop
| Weight | 210 kg |
|---|---|
| Dimensions | 0.77 × 0.65 × 1.13 cm |
In stock
Description
| DESCRIPTION | Brake Disc & Drum Lathe |
|---|---|
| MODEL | C9340 (New Model) |
| DRUM DIA CAPACITY | 180 -380mm |
| DISC DIA CAPACITY | 180 – 450mm |
| SPINDLE SPEED | Varible |
| SPEEDS | 0 – 150rpm |
| TOOLPOST TRAVEL | 100mm |
| FEED RATE | 0.08rpm |
| MOTOR | 0.75kw |
| VOLTAGE | 230v 50hz |
| WEIGHT NETT/GROSS | 210/230kg |
| VOLUME | 0.5656cm |
| PACKING L X W X H | 770 x 650 x 1130mm |
| 3240 |
