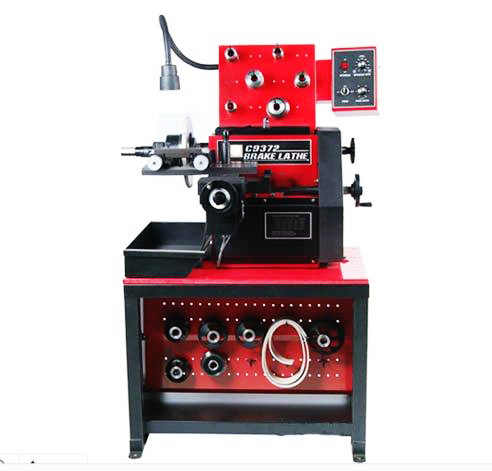

BRAKE DISC & DRUM LATHE: RANGE 102-610MM C9372
$8,260.00
* This C9372 brake drum and disc cutting machine
* Highly accurate and well finished product
* Convenient design allows quick change from rotor to drum machining
* Comes with heavy work bench to reduce vibration and chatter to ensure a smooth finish
* Infinitely varaible speed main drive and cross feeds to provide a perfect finish
* Fitted with top tool tray and board for tool and adaptor storage
* Comes with work light to focus on the workpiece
* Lower tool board under the stand to store less freqently used adaptors and such
* This kit is ideal unit for any auto tool shop
| Weight | 300 kg |
|---|---|
| Dimensions | 1 × 0.86 × 1.3 cm |
In stock
SKU:
AUT10001114
Category: Brake Drum Lathe
Description
| DESCRIPTION | Brake Disc & Drum Lathe |
|---|---|
| MODEL | C9372 |
| DRUM DIA CAPACITY | 152-508mm |
| DISC DIA CAPACITY | 180 – 610mm |
| DISC THICKNESS | 73.0mm |
| FLYWHEEL DIAMETER | 152 – 610mm |
| SPINDLE SPEEDS – VARIABLE | 70 – 320rpm |
| DRUM DEPTH | 229mm |
| FEED RATE | 0 – 0.66m/min |
| MOTOR | 0.6kw |
| VOLTAGE | 230V 50Hz |
| WEIGHT NETT/GROSS | 300/290Kg |
| VOLUME | 1.118cm |
| PACKING L X W X H | 1000 X 860 X 1300mm |
Shipping & Delivery
Related products
BRAKE DISC & DRUM LATHE: RANGE 200-400MM T8440
SKU:
AUT10001110
$5,470.00
BRAKE DISC & DRUM LATHE: RANGE 200-450MM C9340
SKU:
AUT10001116
$4,700.00
* This Disc/Drum brake lathe can handle brake drums 180-350mm and discs to 450mm
* Rigid cast construction for durability and accuracy
* This is the new model with variable speed for accurate cutting
* Machine comes complete with two tool posts
* Cutting tool holder is fitted with standard carbide insert
* Powered by 0.75kw single phase motor
* Affordable and a profitable asset to any auto workshop
BRAKE DISC & DRUM LATHE: RANGE 200-400MM T8445A
SKU:
AUT10001118
$5,760.00
BRAKE DISC & DRUM LATHE: OFF ROAD DISCS T8445A
SKU:
AUT10001126
$245.00
