BOTTOM TOOL: MULTI V 4200MM 130 X 130MM

$5,999.00

Weight 700 kg
Dimensions 4.5 × 0.15 × 0.15 cm
PLEASE ENQUIRE
Add to compare
Add to wishlist
SKU: PBL600548 Category:
Description

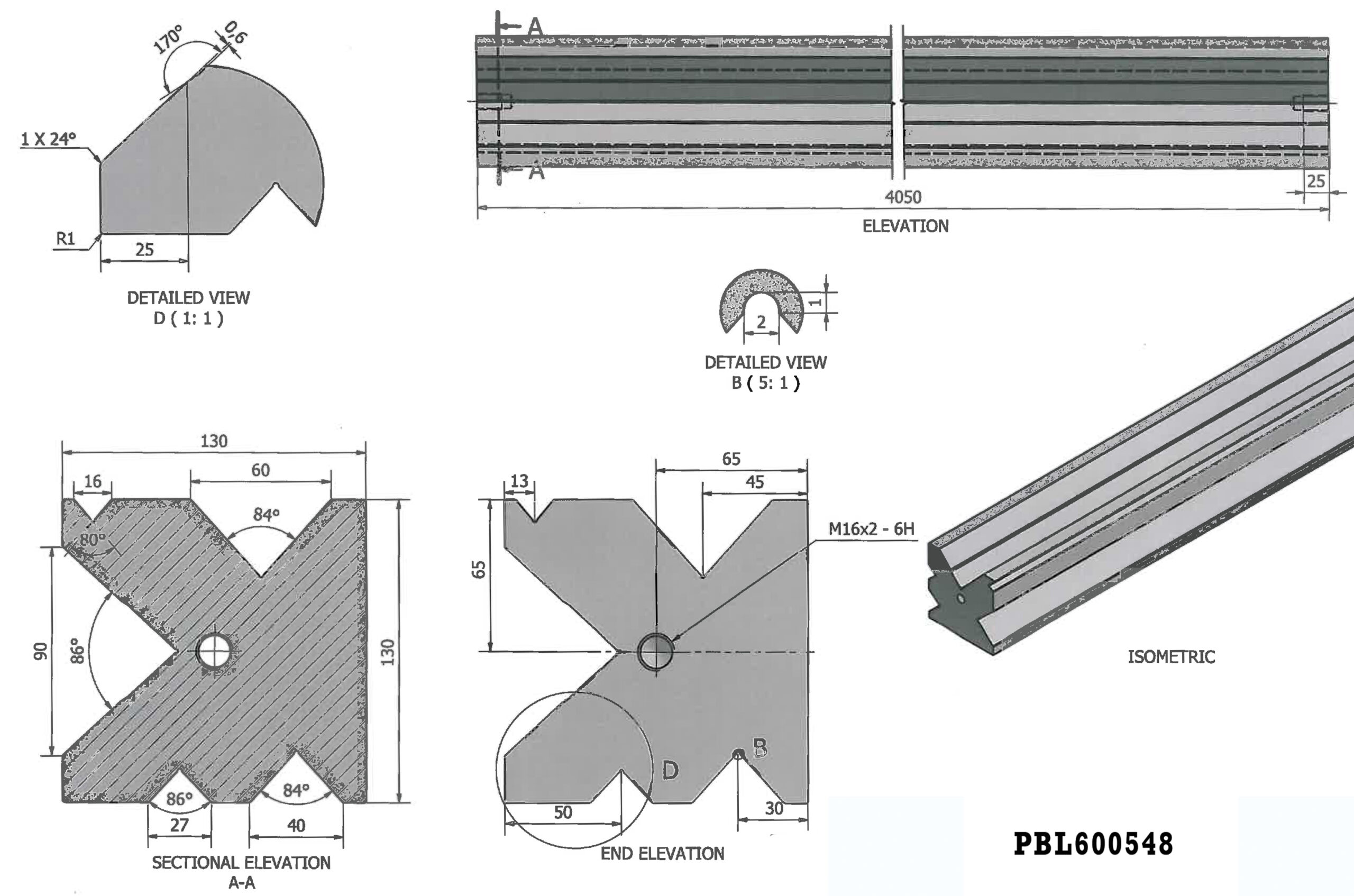

MAKE TOP TOOLS
TYPE BOTTOM TOOL ONE PIECE
STYLE MULTI V BLOCK
V OPENIMG 60, 40 = 84 deg, 16= 80 deg
90, 27 = 86 deg
DEGREE 80°, 84°, 86°
HEIGHT 130 X 130mm
RADIUS 1.2mm
SEGMENT LENGTH 4200mm
WEIGHT NETT/GROSS 700 Kg
VOLUME 0.1013cm
