BOTTOM TOOL: MULTI V 4200MM 130 X 130MM
BOTTOM TOOL: MULTI V 4200MM 130 X 130MM Excl. GST: $5,999.00
Incl. GST: $6,898.85
Back to products
Placeholder
BOTTOM TOOL: MULTI V 4200MM 75 X 75MM Excl. GST: $4,800.00
Incl. GST: $5,520.00
BOTTOM TOOL: MULTI V 4050MM 180 x 155mm - Image 1
Click to enlarge

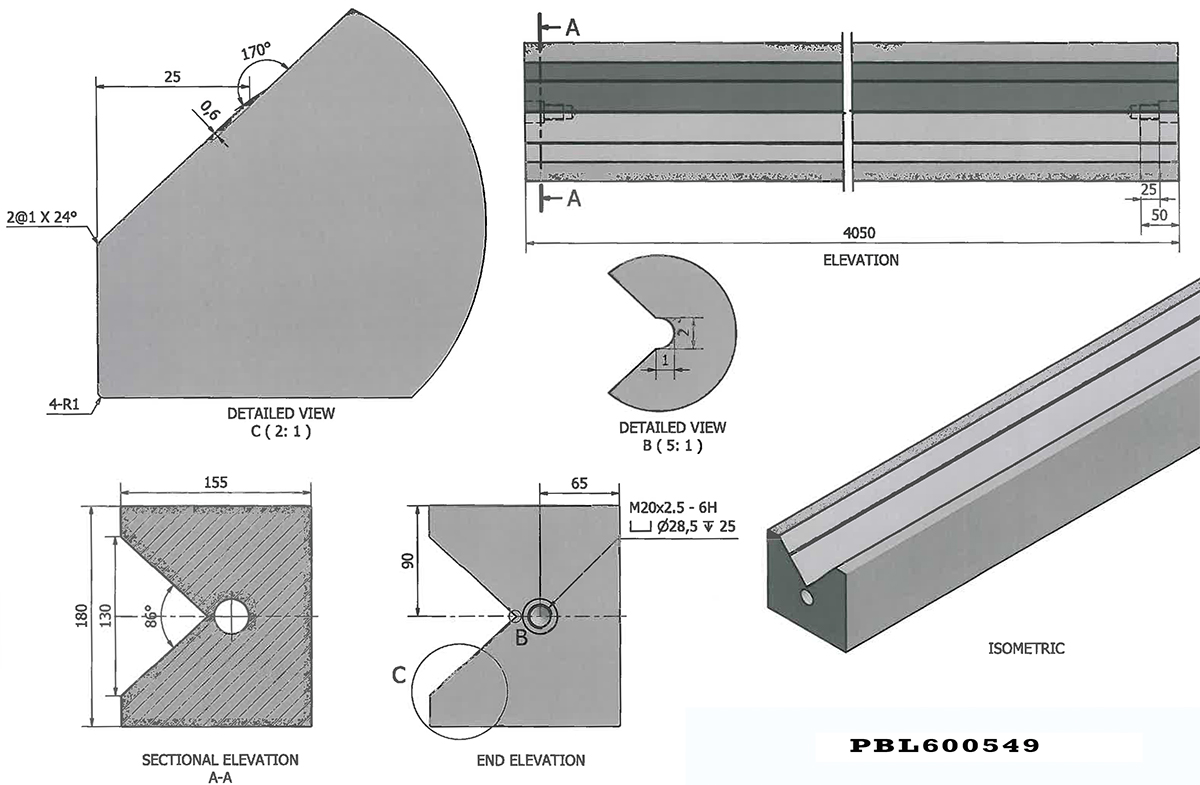

BOTTOM TOOL: MULTI V 4050MM 180 x 155mm

Excl. GST: $7,999.00
Incl. GST: $9,198.85

Weight 850 kg
Dimensions 4.5 × 0.18 × 0.16 cm
PLEASE ENQUIRE
Add to compare
Add to wishlist
SKU: PBL600549 Category:
Description
Make TOP TOOLS
Type BOTTOM TOOL ONE PIECE
Style MULTI V BLOCK
VOpening 130mm = 86 deg
Degree 86°
Height 180 X 155mm
Radius 1.2mm
Segment Length 4050mm
Weight 850 Kg
VOLUME 0.1296cm
Shipping & Delivery
