Description

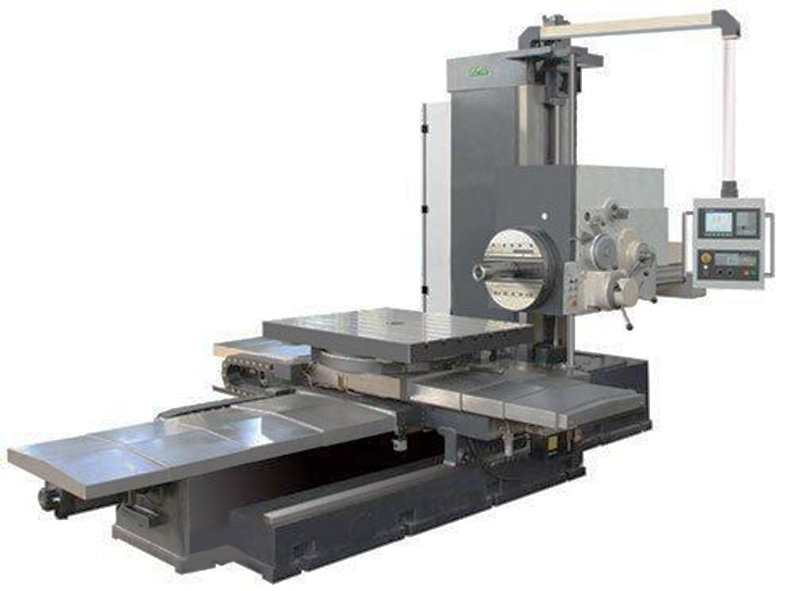

| DESCRIPTION | Boring/Milling Machine |
|---|---|
| MODEL | TK65-13 |
| BORING SPINDLE DIAMETER | 130mm |
| SPINDLE TAPER | ISO50 |
| RANGE OF SPEEDS | 1 – 2000rpm |
| MAIN MOTOR | 37kw |
| TABLE LOAD | 10/20/30/50/80 Ton |
| RAM SIZE L x W | 380 x 420mm |
| MAX SPINDLE THRUST | 25000 N |
| WORKTABLE SIZE | 1400 x 1600mm 2000 x 2500mm |
| X TRAVEL | 2500 – 10000mm |
| Y TRAVEL | 2000 – 3000mm |
| Z TRAVEL | 800mm |
| V AXIS (Column) | 1600mm |
| B AXIS ROTARY TABLE | 360deg |
| MACHINE WEIGHT | 42000kg |
| CNC SYSTEM | Siemens, Fanuc, Fargor |
