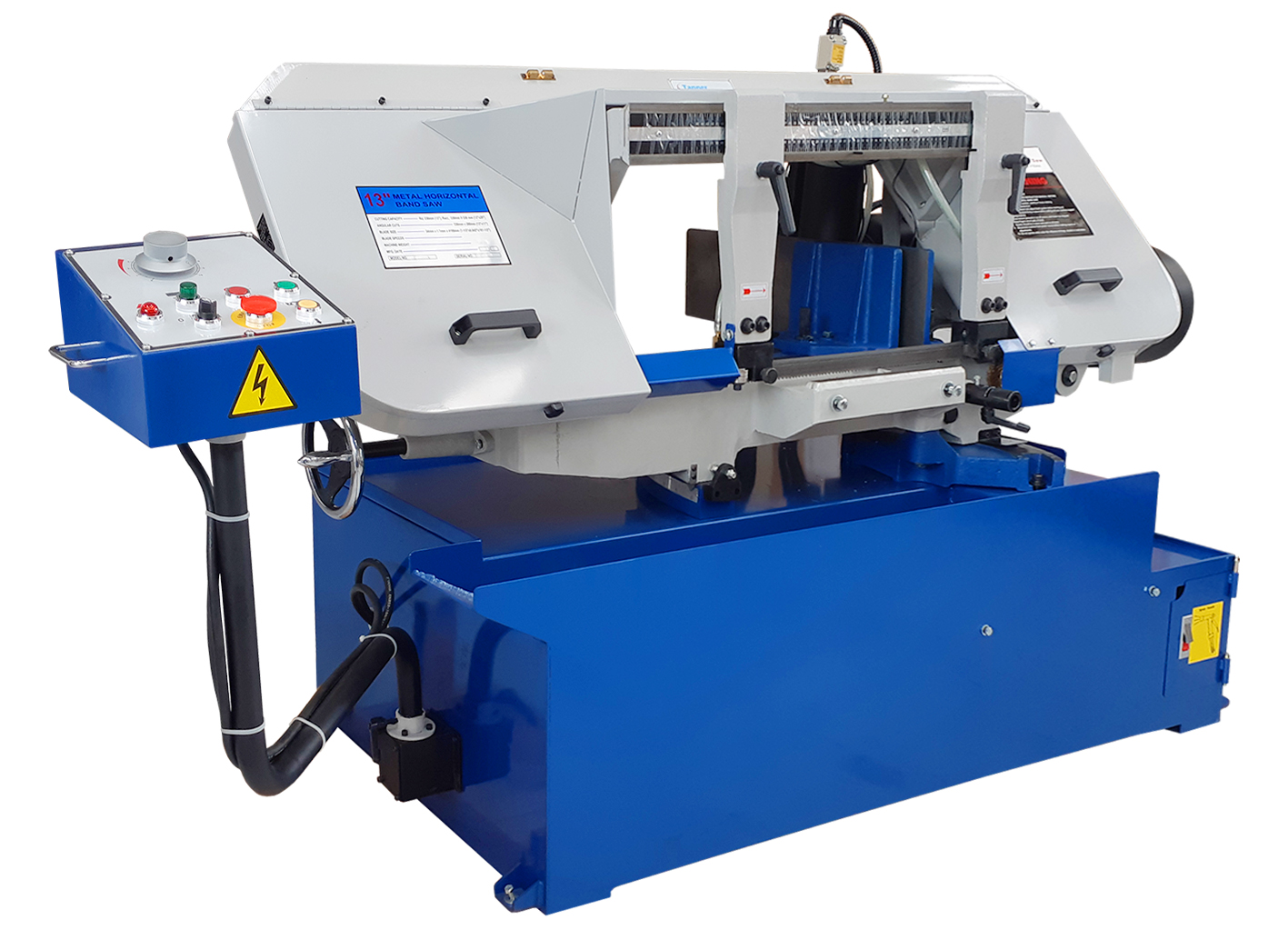

| Description | Semi-automatic bandsaw |
|---|---|
| Model | UE-330SSA |
| Capacity Round 90° (mm) | 330 |
| Capacity Rectangular 90° (mm) | 480 x 330 |
| Capacity Round 45° (mm) | 225 |
| Capacity Rectangular 45° (mm) | 280 x 255 |
| Blade Speeds (no.) | Variable |
| Blade Speeds (m/min) | 20 – 80 |
| Blade Size L x H (mm) | 4,100 x 34 |
| Motor (kW) | 2.25 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 750 / 860 |
| Volume (m³) | 3.0896 |
| Packing Size L x W x H (mm) | 2,284 x 889 x 1,499 |
Sold out
Description
SKU : BSH101679
Price per Unit
$17,500.00 (Exc GST)
$20,125.00 (Inc GST)
FEATURES:
* Movable control box on swivel arm at a convenient height.
* Adjustable stroke limit switch presets the return height of the bow.
* Mitre cut up to 45° with a swivel head and quick release vice.
* All welded steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with flow control to both sides of the cut.
* Variable speed drive using stepless pulley and adjustment knob.
* Heavy duty guide frame with measuring scale.
* Adjustable roller guides for accurate cutting.
* Wire wheel cleans swarf off the blade while cutting.
* Made in Taiwan.
| Weight | 860 kg |
|---|---|
| Dimensions | 2.26 × 0.93 × 1.47 cm |
