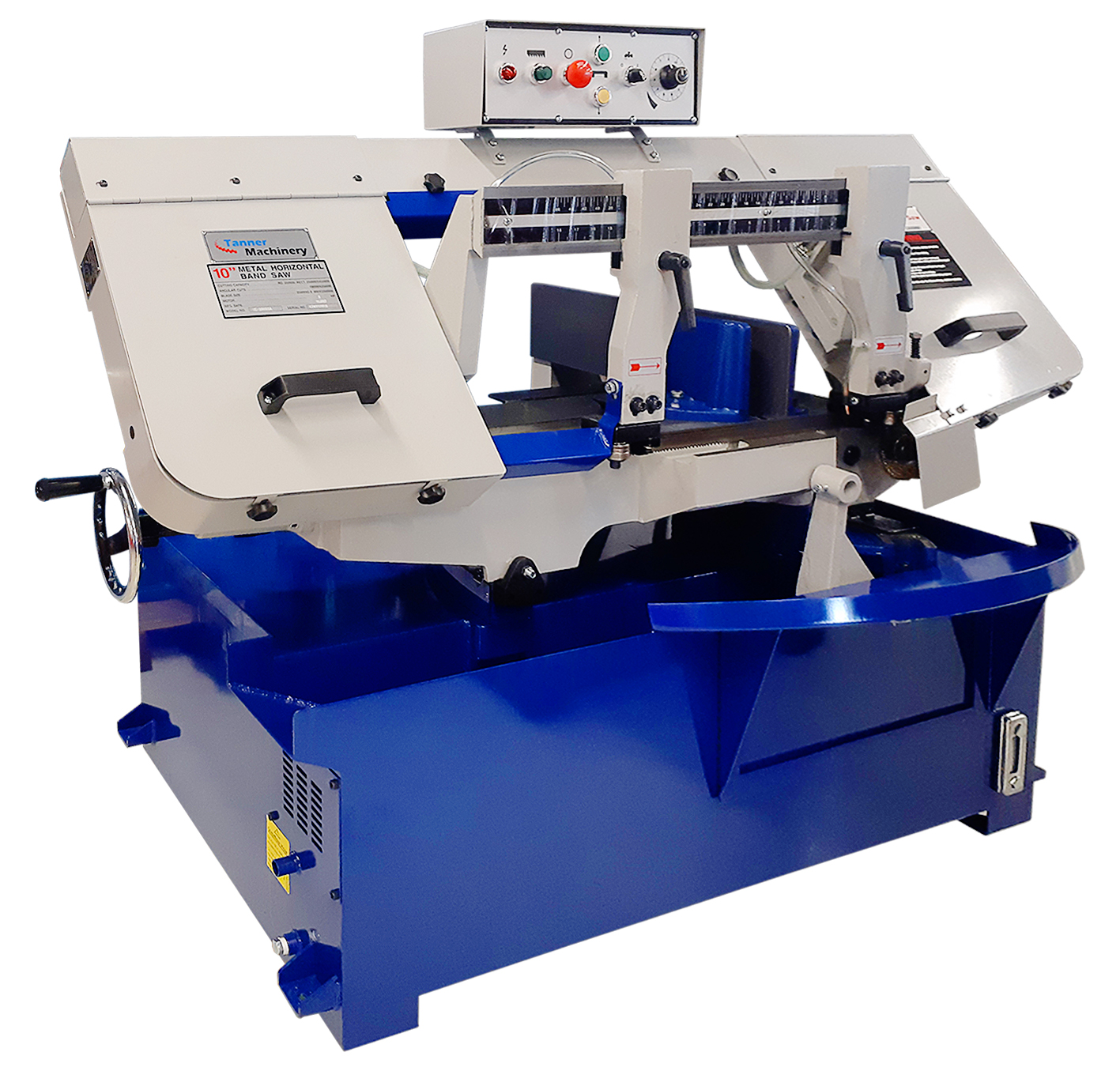

| Description | Semi-automatic bandsaw |
|---|---|
| Model | UE-250SSA |
| Capacity Round 90° (mm) | 250 |
| Capacity Rectangular 90° (mm) | 250 x 385 |
| Capacity Round 45° (mm) | 215 |
| Capacity Rectangular 45° (mm) | 250 x 215 |
| Blade Speeds (no.) | Variable |
| Blade Speeds (m/min) | 25 – 75 |
| Blade Size L x H (mm) | 3,300 x 27 |
| Motor (kW) | 1.5 |
| Voltage (V) | 415 |
| Weight Nett / Gross (kg) | 485 / 550 |
| Volume (m³) | 1.4212 |
| Packing Size L x W x H (mm) | 1900 x 680 x 1100 |
Description
SKU : BSH101674
Price per Unit
$9,600.00 (Exc GST)
$11,040.00 (Inc GST)
FEATURES:
* Quality semi-automatic bandsaw.
* Control box on top of bow for descent rate & coolant.
* Mitre cut up to 45° with a swivel head and quick release vice.
* Rugged steel construction.
* Easy blade change with adjustable tension.
* Built in coolant system with flow control to both sides of the cut.
* Variable speed drive using stepless pulley and adjustment knob.
* Heavy duty guide frame with measuring scale.
* Adjustable roller guides for accurate cutting.
* Wire wheel cleans swarf off the blade while cutting.
* Made in Taiwan.
| Weight | 550 kg |
|---|---|
| Dimensions | 1.9 × 0.68 × 1.1 cm |
Specifications
Description
Reviews (0)
Shipping & Delivery
Related products
BANDSAW: CY-350R 270MM 1PH (TAIWAN)
SKU:
BSH101270
* European style bandsaw.
* Round table.
* Contol panel located on the front of the machine.
* Fitted with quick action lock/release vice.
* Swivel head adjustment for scaled mitre cutting.
* Emergency cut out switch.
* Coolant pump for cutting effiency and longer blade life.
* Mounted on drip tray with stand assembly.
* Hydraulic cylinder to control down feed during the cutting process.
* Made in Taiwan.
BANDSAW: CY-135A 135MM 1PH (TAIWAN)
SKU:
BSH101322
* Small but quality workshop bandsaw.
* Quick action lock & release vice.
* Higher working height for convenience.
* Mitre cutting up to 45° with pre-set angles on the vice.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Made in Taiwan.
BANDSAW: CY-275 225MM 2 SPEED 3PH (TAIWAN)
SKU:
BSH101350
* Quality bandsaw with a heavy duty gear drive system and two speed motor.
* Quick action lock & release vice.
* Higher working height for convenience.
* Mitre cutting up to 45° with pre-set angles on the vice.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Made in Taiwan.
BANDSAW: CY-280 DUAL MITRE 2 SPEED 3PH (TAIWAN)
SKU:
BSH101352
* Heavy duty dual mitre bandsaw with a two speed motor.
* Quick action lock & release vice, with unique sliding design.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Input support roller for long work pieces.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
BANDSAW: CY-355A DUAL MITRE MANUAL (TAIWAN)
SKU:
BSH101363
* Heavy duty dual mitre bandsaw with two speed motor.
* Higher working height for convenience.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Automatic blade breakage sensor.
* Easy blade changing and hydraulic tensioning adjustment.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
BANDSAW: UE-712SB 7″ MITRE (TAIWAN) BELT DRIVE
SKU:
BSH101435
* Blade speed is adjusted using a pulley drive system.
* Dual mitre cutting up to 45° using the swivel head and sliding vice, no need to move the material.
* Built in coolant system with adjustable flow control.
* Hydraulic damper controls the rate of blade descent.
* Limit switch cuts the power once the cut is complete.
* Adjustable roller guides for accurate cutting.
* Adjustable length stop for repetitive cutting.
* Wire wheel cleans swarf off the blade while cutting.
* On castors for easy manoeuvrability.
* Made in Taiwan.
BANDSAW: UE-530DSA 21″ DUAL MITRE (TAIWAN)
SKU:
BSH101683
* Comprehensive control panel.
* Hydraulic vice, with unique sliding design and pressure gauge.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Variable speed with digital speed display.
* Hydraulic blade tensioner with automatic settings.
* Fabricated steel construction.
* Mechanical stroke counter.
* Precision swivel scale with magnified reader.
* Powered wire wheel cleans swarf off the blade while cutting.
* Built in coolant system with flow control to both sides of the cut.
* Adjustable roller guides for accurate cutting.
* Made in Taiwan.
BANDSAW: WG-500DSA DUAL MITRE (TAIWAN)
SKU:
BSH101685
* Taiwanese made semi-automatic dual-mitre bandsaw.
* Comprehensive control panel on telescopic pendant.
* Full length hydraulic vice, with unique sliding design.
* Mitre cut up to -45° / +60° using a quick locking handle system.
* Linear bearing on the base of the sliding vice for smooth movement.
* Rack type quick action vice with hydraulic clamping.
* Motor inverter controls the blade speed accurately and efficiently.
* Mobile coolant tray, convnient for when cutting angles.
* Material feeder for detecting cutting height and reducing cycle time.
